Tune-Up - V8
>>
Distributor
Tune-Up - V8: Distributor
Point Gap
.016"
Cam Angle
28-32°
Breaker Arm Spring Tension
19-23 ozs.
Condenser Capacity
.18-.23 mfd.

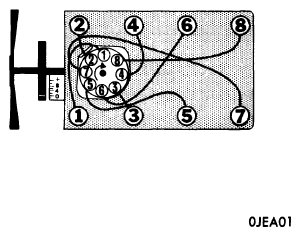

Fig 1: Firing Order & Timing Marks
Courtesy of CHRYSLER GROUP, LLC
