Jeep (W/Leaf Springs): Caster

Caster adjustment is accomplished by inserting wedge between spring and axle. To increase caster, insert wedge with thick portion toward rear of vehicle. To decrease camber, insert wedge with thick portion toward front of vehicle.

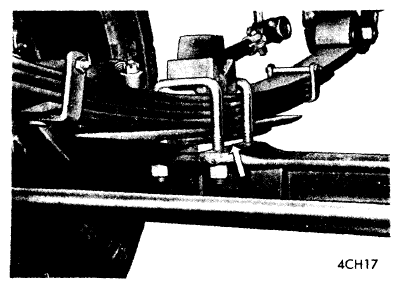

Fig 1: CASTER SHIM INSTALLED
G09335639Courtesy of CHRYSLER GROUP, LLC
