HOLLEY Model 2209 2-Barrel: Adjustment: Dashpot

With throttle lever set at curb idle and dashpot fully depressed, there should be 5/32" clearance between stem and tab on throttle lever. Loosen lock nut and position dashpot to obtain clearance.

CARBURETOR ADJUSTMENT SPECIFICATIONS

Holley Carb. No.

Idle Speed (Engine RPM)

Fast Idle Cam Position

Fuel Level Setting

Auto Choke Setting

Bowl Vent

Vacuum Break Setting

Curb

Fast

R-3234A

550 ⁽¹⁾

1800

High Step

9/16"

Index

5/64"

.....

R-3262A

550 ⁽¹⁾

1800

High Step

9/16"

Index

5/64"

.....

R-3601A

550 ⁽¹⁾

1800

High Step

9/16"

Index

5/64"

.....

⁽¹⁾	Automatic Transmission in Neutral, 500 RPM.

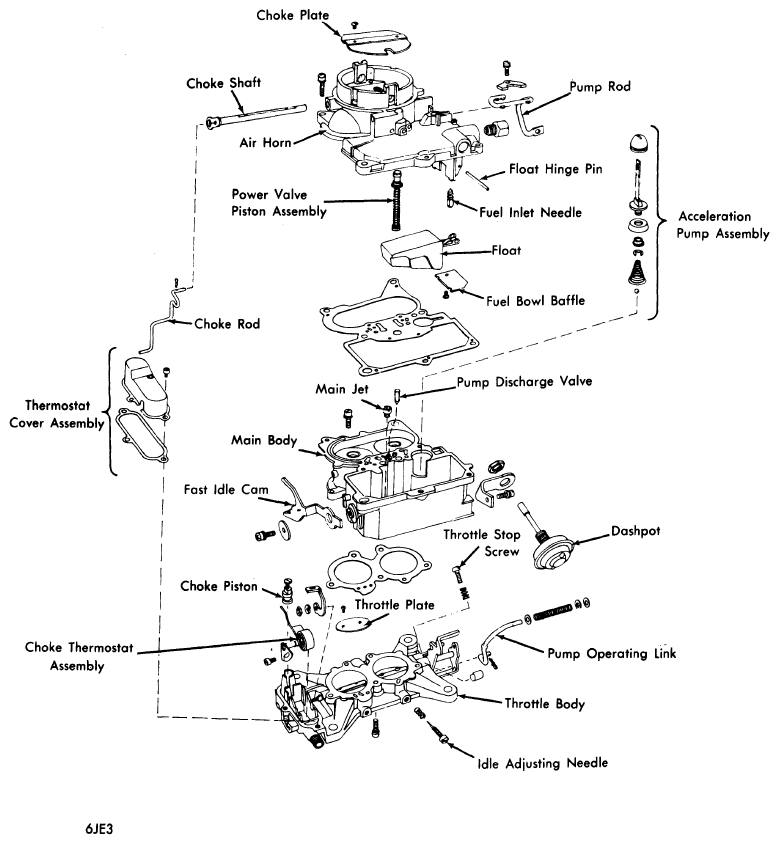

Fig 1: Holley Model 2209 Carburetor

Courtesy of CHRYSLER GROUP, LLC
