Carter Model RBS Single Barrel: Adjustment: Unloader

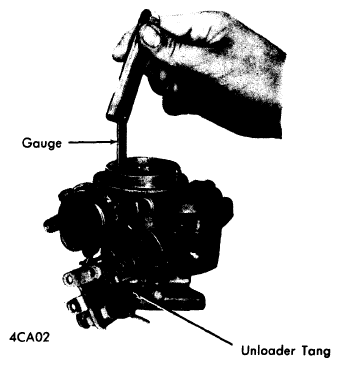

With throttle valve wide open, measure clearance between upper edge of choke valve and wall of air horn. Adjust to specifications by bending unloader arm on throttle lever.
Courtesy of CHRYSLER GROUP, LLC
