Hub Body: Disassembly

Using suitable pliers, remove inner hub body snap ring. Remove axle shaft hub from hub body, noting from which side of body gear teeth extend. Remove needle bearing assembly.

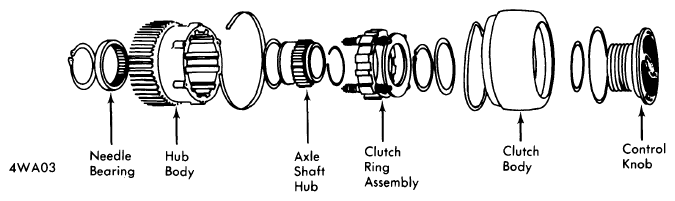

Fig 1: WARN SPRING-LOCK HUB (INTERNAL TYPE)

Courtesy of NOT AVAILABLE
