Image Processing Module
WARNING: This page is about a different car, the 2019 Jaguar I-Pace. However, it is still accessible from the selected car via links, so may be relevant.
The Image Processing Module (IPM) is able to detect road lane markings, traffic sign markings and monitor the road ahead. This information is used for Lane Departure Warning (LDW), Traffic Sign Recognition (TSR) and Autonomous Emergency Braking (AEB).

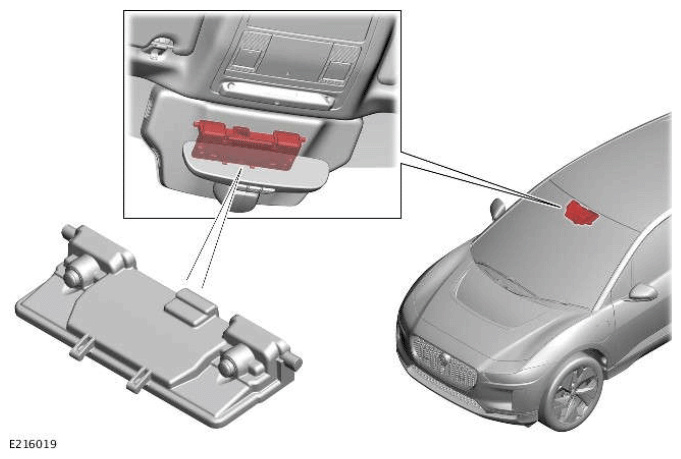

The IPM is located in the rear view mirror housing.
The IPM has 2 built-in forward facing cameras. The IPM receives an ignition supply from the Passenger Junction Box (PJB). Information can be exchanged from the IPM via the High Speed (HS) Controller Area Network (CAN) chassis bus to the other modules.
