Torque Specifications
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN |
|---|---|---|---|
| Front seat backrest retaining bolts | 35 | 26 | - |
| Front seat safety belt anchor retaining bolts | 40 | 30 | - |
| Front seat retaining bolts | 47 | 35 | - |
| Front safety belt buckle retaining bolt | 40 | 30 | - |
| Front seat tilt assembly retaining bolt to seat frame | 26 | 19 | |
| Front seat tilt assembly retaining bolt to module | 30 | 22 | - |
| Rear seat retaining bolts | 30 | 22 | - |
| Rear seat backrest retaining bolts | 17 | 13 | - |
| Side air bag module retaining nuts | 7 | - | 62 |
NOTE:
Numbers with a green background are a single use component.

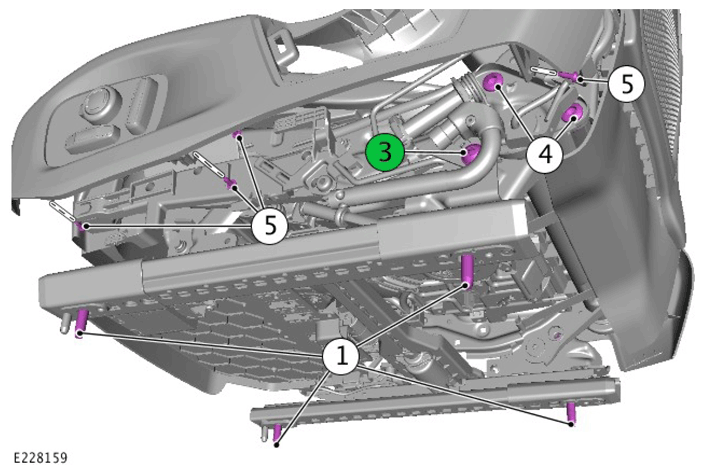

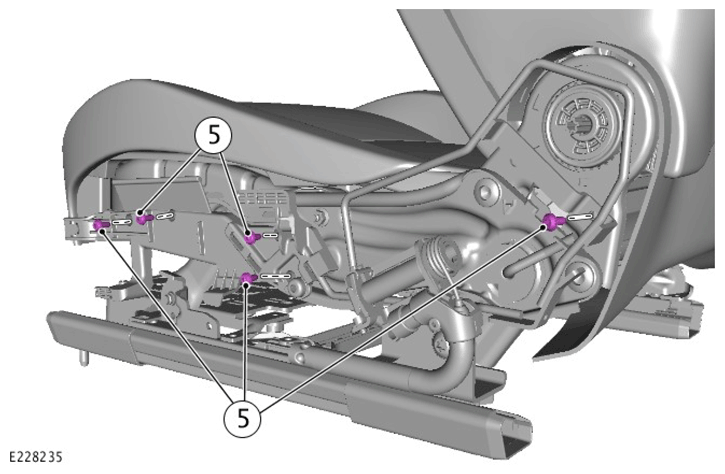

COMPONENT TORQUE LOCATION

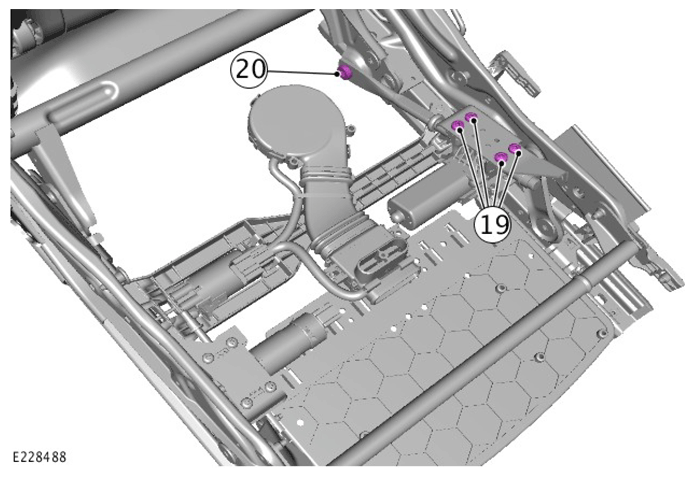

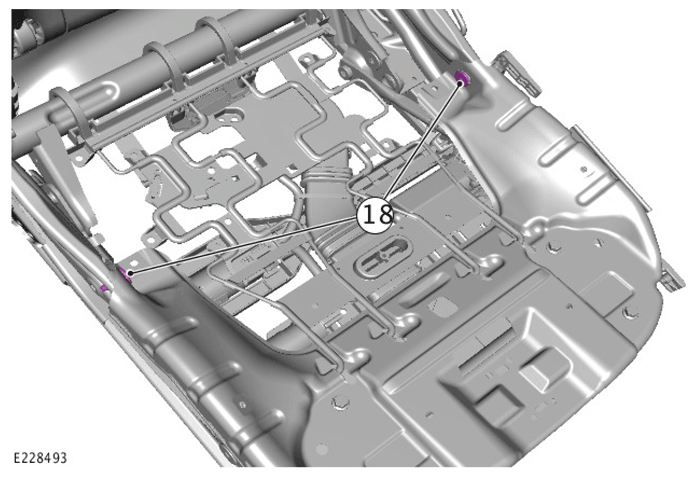

COMPONENT TORQUE LOCATION

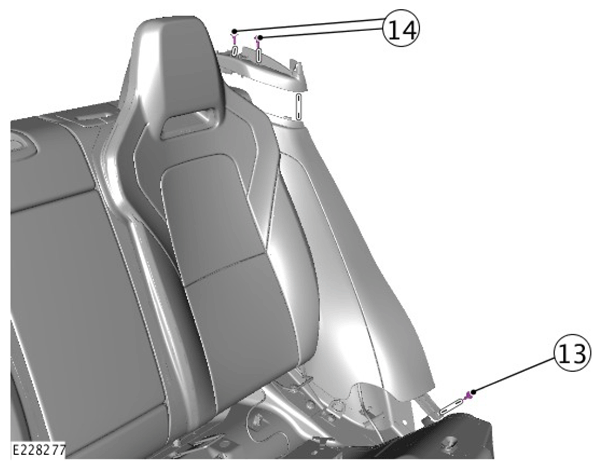

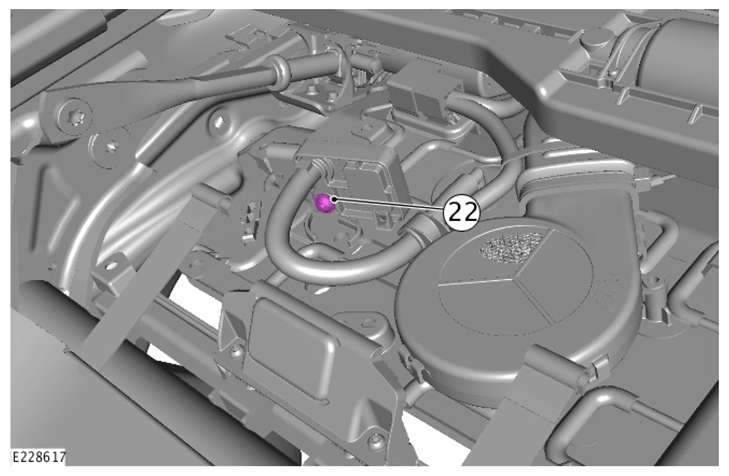

COMPONENT TORQUE LOCATION

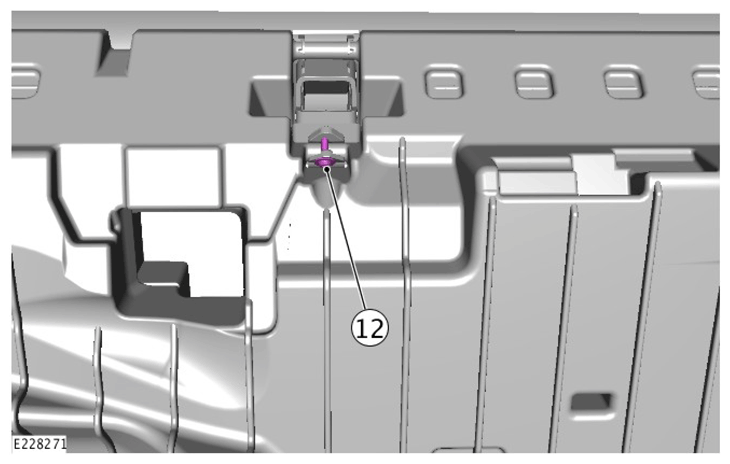

COMPONENT TORQUE LOCATION

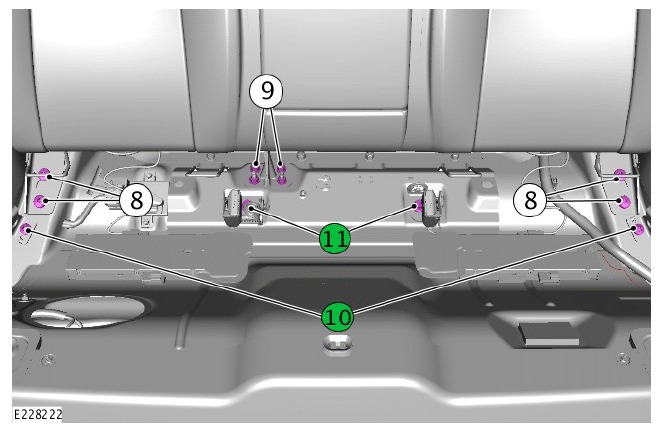

COMPONENT TORQUE LOCATION
COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION

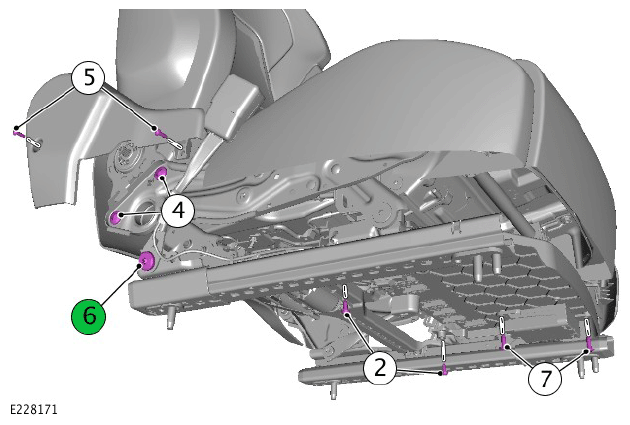

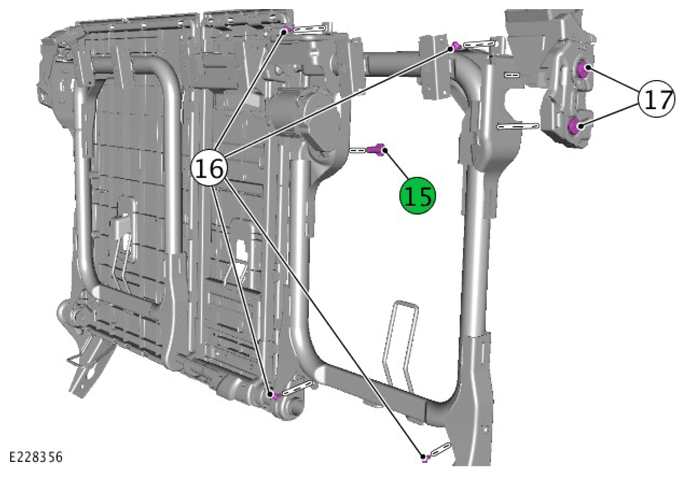

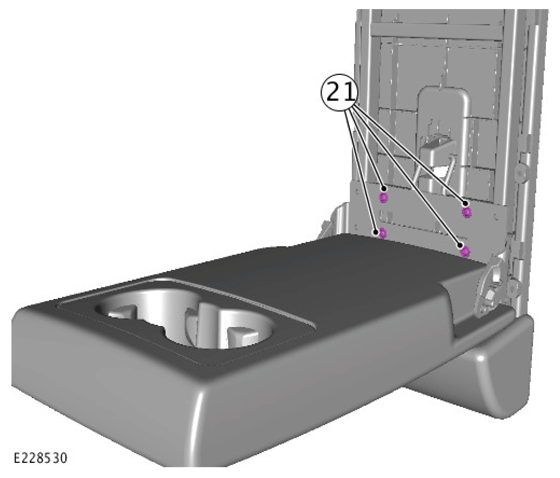

| COMPONENT | NM | LB-FT | |
|---|---|---|---|
| 1 | Front row seat retaining bolts | 47 | 34.6 |
| 2 | Driver Seat Module (DSM) tray bolts | 7 | 5.1 |
| 3 | Front row seatbelt pretensioner bolt | 40 | 29.5 |
| 4 | Front row seat backrest frame bolts | 50 | 36.8 |
| 5 | Front row switchpack and bracket screws | 2 | 1.4 |
| 5 | Front row seat cushion side trim screws | 2 | 1.4 |
| 6 | Front row seatbelt buckle bolt | 40 | 29.5 |
| 7 | Driver Seat Module (DSM) screws | 2 | 1.4 |
| 8 | Second row seat retaining bolts | 40 | 29.5 |
| 9 | Second row seat retaining nuts | 40 | 29.5 |
| 10 | Second row seatbelt retaining bolt | 40 | 29.5 |
| 11 | Second row seatbelt buckle bolt | 40 | 29.5 |
| 12 | Child seat anchor trim screws | 2 | 1.4 |
| 13 | Second row seat bolster bolt | 9 | 6.6 |
| 14 | Second row seatbelt guide trim bolts | 9 | 6.6 |
| 15 | Second row center seatbelt retractor bolt | 40 | 29.5 |
| 16 | Second row seat backrest trim panel screws | 2 | 1.4 |
| 17 | Second row seat backrest latch bolts | 40 | 29.5 |
| 18 | Front seat cushion frame bolts | 40 | 29.5 |
| 19 | Front seat height motor bolts | 25 | 18.4 |
| 20 | Front seat height motor rod bolt | 40 | 29.5 |
| 21 | Rear arm rest retaining bolts | 9 | 6.6 |
| 22 | Occupancy sensor bolt | 4 | 2.9 |
