Audio Amplifier Module (AAM) - Meridian Audio System (380W)

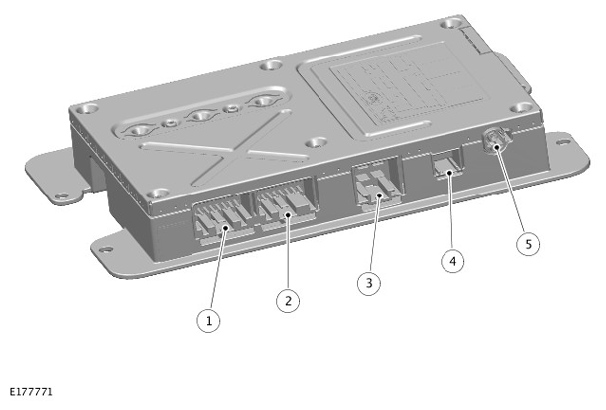

| ITEM | DESCRIPTION |
|---|---|
| 1 | Connector - Speakers |
| 2 | Connector - Speakers |
| 3 | Connector - Power supply |
| 4 | Connector - Wireless Headphones |
| 5 | Connector - Infotainment Master Controller (IMC) (Ethernet) |
The Meridian Audio System with 12 speaker and the Jaguar Sound System with 10 speakers systems both use an AAM specific to the system. The AAMs are similar in design, with the only difference being the power outputs; 250W or 380W.
The AAM has four connectors which provide two hardwired connections to the vehicle speakers, an Ethernet port for communication between the IMC and the AAM and a connector for power and ground connections.
Power supplies are received from the Rear Junction Box (RJB).
