Infotainment Slave Controller (ISC)

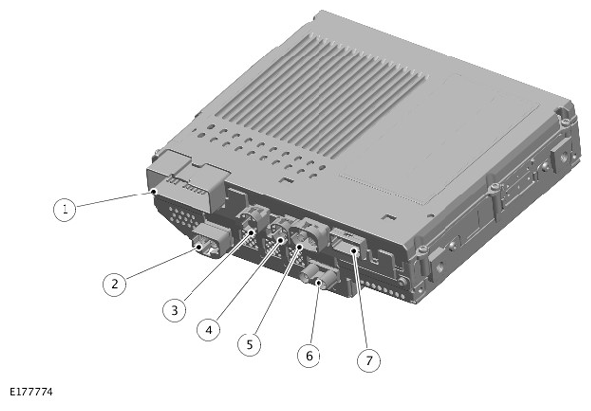

| ITEM | DESCRIPTION |
|---|---|
| 1 | Main connector - Power supply, microphone, power on signal from IMC |
| 2 | Connector - Infotainment Master Controller (IMC) (Ethernet) |
| 3 | Connector - Right rear screen (if fitted) (APIX2) |
| 4 | Connector - Left rear screen (if fitted) (APIX2) |
| 5 | Connector - Rear portable media interface panel (APIX2) |
| 6 | Connector - Bluetooth® and WiFi |
| 7 | Connector - Rear portable media interface panel (USB 3.0) |
The Infotainment Slave Controller (ISC) is located behind the rear left wheel arch, in the luggage compartment, next to the IMC. It is the controller of the Rear Seat Entertainment system (RSE).
The ISC has the following systems and features:
- Two 8" rear screens with separate content
- Bluetooth® connectivity - for the Rear Seat Entertainment remote controller
- 2 USB and 2 HDMI ports
- Wireless headphones
