Removal And Installation: Removal

NOTE:
  • Removal steps in this procedure may contain installation details.
  • Left illustration shown, right is similar.
  • The ignition must be switched off.
  1. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Fender Splash Shield .

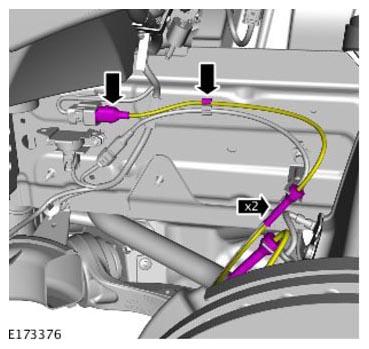

  3. G11308732

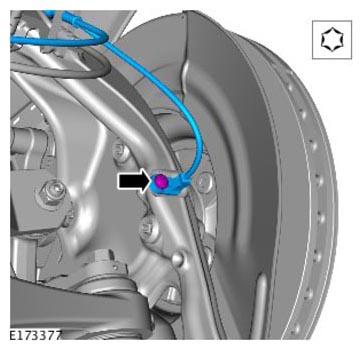

  4. G11308733

Torque Specification: 9 Nm
