Control Diagram

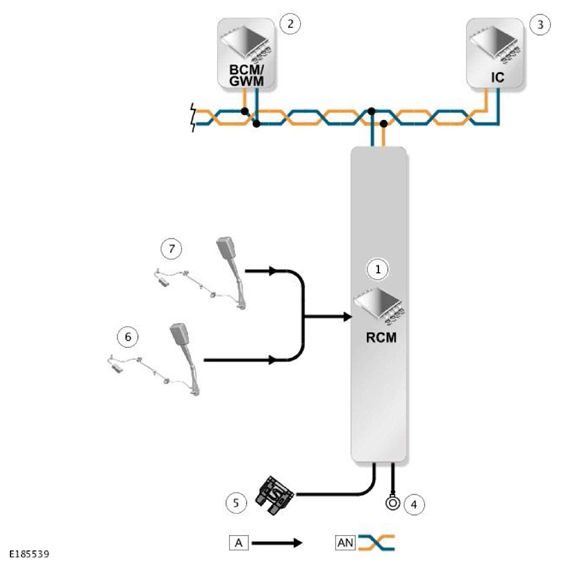

CONTROL DIAGRAM - SHEET 1 OF 2 - FRONT SEATBELT REMINDER
A = HARDWIRED; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Restraints Control Module (RCM) |
| 2 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 3 | Instrument Cluster (IC) |
| 4 | Ground |
| 5 | Power supply |
| 6 | Front left seatbelt buckle switch |
| 7 | Front right seatbelt buckle switch |

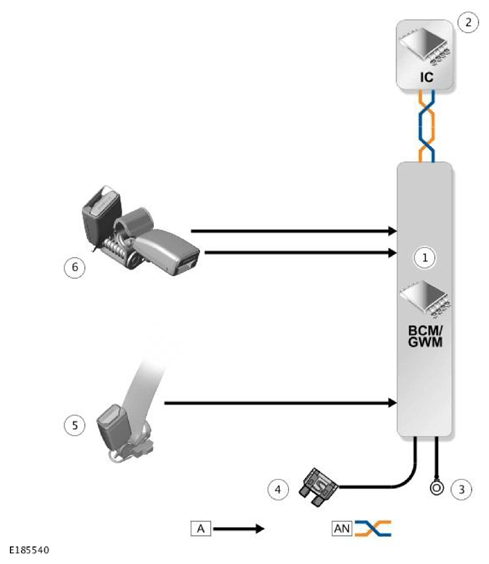

CONTROL DIAGRAM - SHEET 2 OF 2 - REAR SEATBELT REMINDER
A = HARDWIRED; AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 2 | Instrument Cluster (IC) |
| 3 | Ground |
| 4 | Power supply |
| 5 | Rear left seatbelt buckle switch |
| 6 | Rear right and center seatbelt buckle switches |
