Driver Air Bag Module (G1267561): Installation

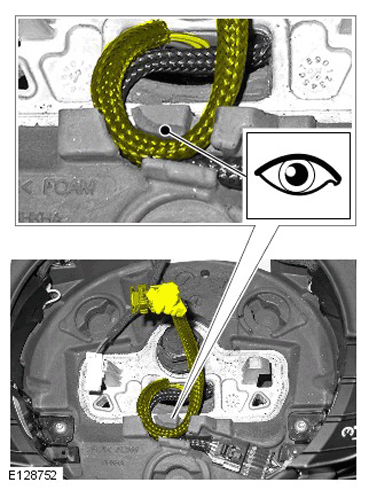

  1. CAUTION: Make sure that the wiring harnesses are correctly routed.
    G11290597

    To install, reverse the removal procedure.
