Anti-Lock Brake System (Abs) Control Module
CAUTION:
The ABS control module and the HCU comprise a single unit and must not be separated.

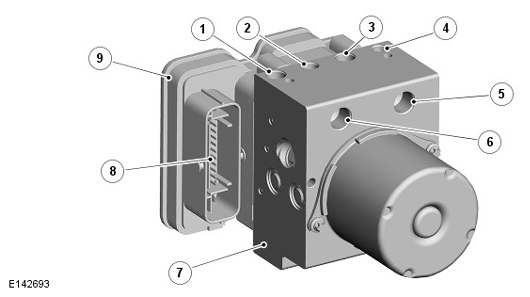

| ITEM | DESCRIPTION |
|---|---|
| 1 | Rear right brake connection |
| 2 | Front left brake connection |
| 3 | Front right brake connection |
| 4 | Rear left brake connection |
| 5 | Primary circuit inlet connection |
| 6 | Secondary circuit inlet connection |
| 7 | Hydraulic Control Unit (HCU) |
| 8 | Electrical connection |
| 9 | Anti-lock Brake System (ABS) control module |
The ABS control module is located in the passenger side, rear engine bay. The module is mounted on the rear face of the HCU, which it uses to control all braking and stability functions by modulating hydraulic pressure to the individual wheel brakes.
If an ABS modulator fault is detected, 'ABS FAULT' will be displayed in the IC message center and the amber warning indicator will illuminate.
