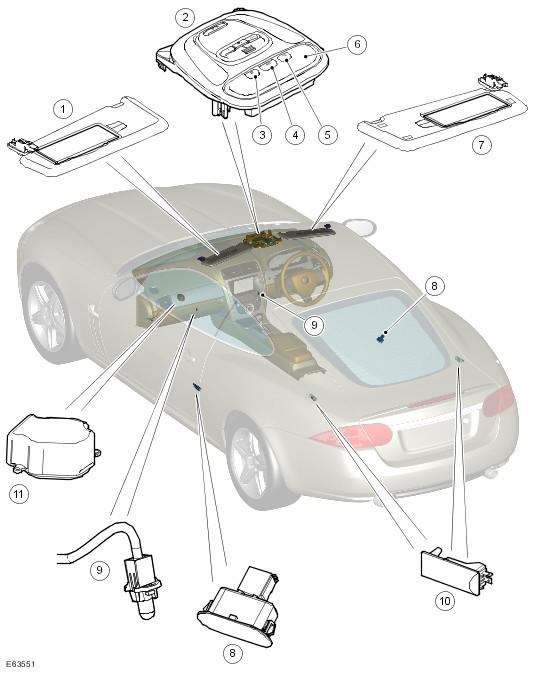

Component Location
WARNING: This page is about a different car, the 2011 Jaguar XKR, 2011 Jaguar XK, 2010 Jaguar XKR, and 2010 Jaguar XK. However, it is still accessible from the selected car via links, so may be relevant.
| Item Number | Description |
|---|---|
| 1 | Left Hand (LH) vanity mirror |
| 2 | Overhead console (Coupe version shown) |
| 3 | LH map reading lamp switch |
| 4 | Interior lamp switch |
| 5 | Right Hand (RH) map reading lamp switch |
| 6 | Map and interior lamps |
| 7 | RH vanity mirror |
| 8 | LH and RH door puddle lamps |
| 9 | LH and RH footwell lamps |
| 10 | LH and RH luggage compartment lamps |
| 11 | Glovebox lamp |
