Occupant Detection Sensor (G1791674): Installation

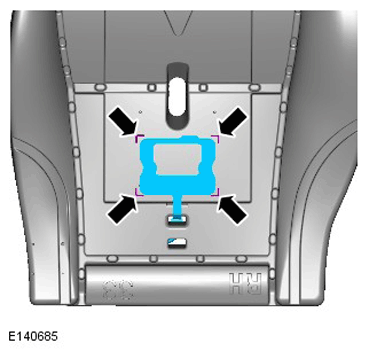

  1. CAUTION: Make sure the component is aligned as shown.
    G11289027

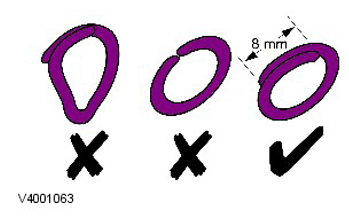

  2. NOTE:
    • Make sure that new hog rings are installed.
    • Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.
    G11288759

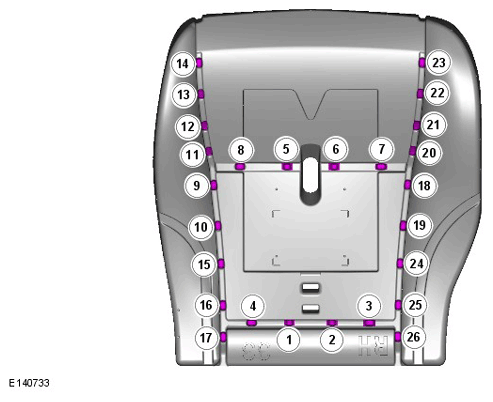

  3. NOTE: Make sure that the hogrings are installed in the sequence shown.
    G11288760

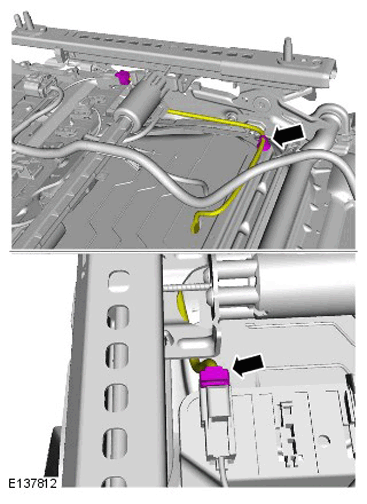

  4. CAUTION: Make sure the component is aligned as shown.
    NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
    G11288781
  5. To install, reverse the removal procedure.
