Occupant Classification Sensor (G1791672): Removal

NOTE:
  • Some variation in the illustrations may occur, but the essential information is always correct.
  • Removal steps in this procedure may contain installation details.
  1. Make the air bag supplemental restraint system (SRS) safe. Refer to: SUPPLEMENTSL RESTRAINT SYSTEM HEALTH AND SAFETY PRECAUTIONS .
  2. Refer to: Front Seat (Removal and Installation).
  3. Refer to: Front Seat Control Switch (Removal and Installation).

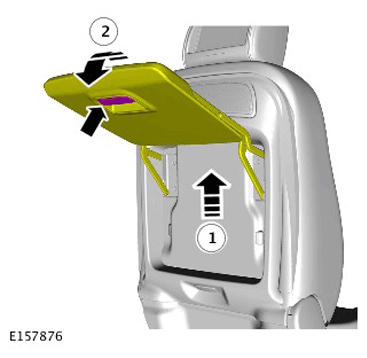

  4. G11294170

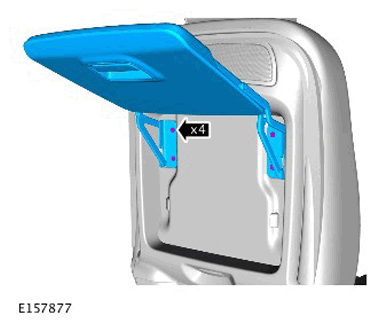

  5. G11294171

    Torque Specification: 8 Nm

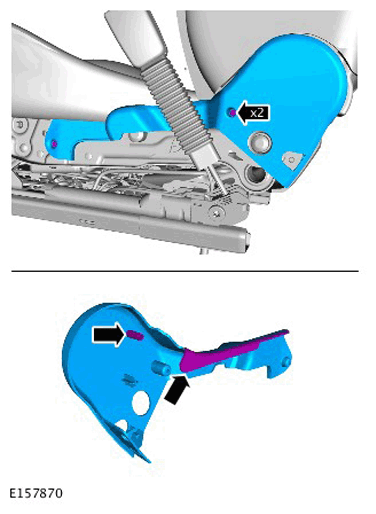

  6. G11294172

    Torque Specification: 1.5 Nm

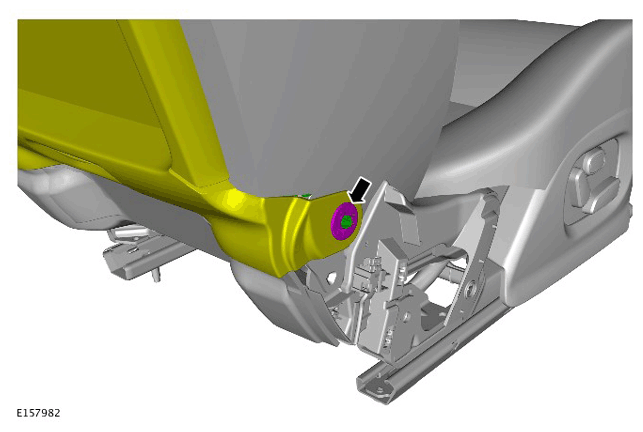

  7. NOTE: Repeat the procedure for the other side.
    G11294173

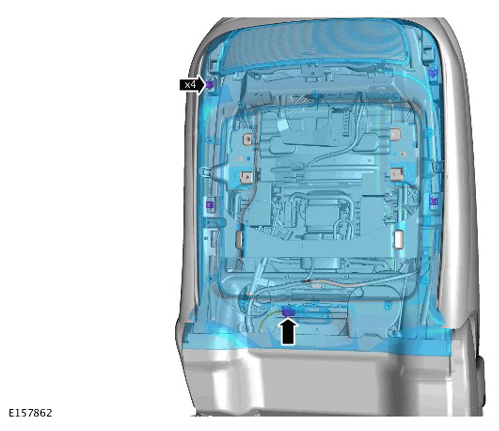

  8. NOTE: Make sure that the clips are installed in the correct orientation.
    G11294174

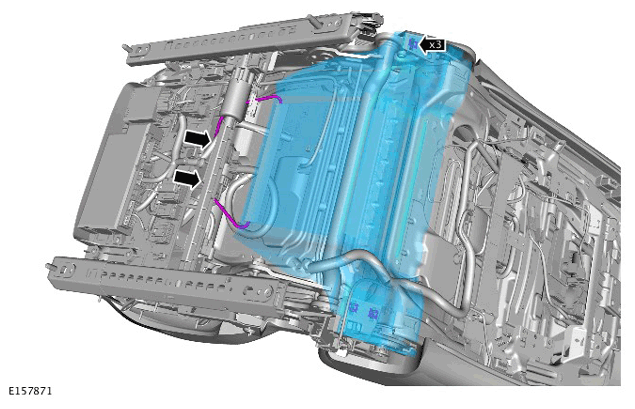

  9. NOTE: Make sure that the clips are installed in the correct orientation.
    G11294175

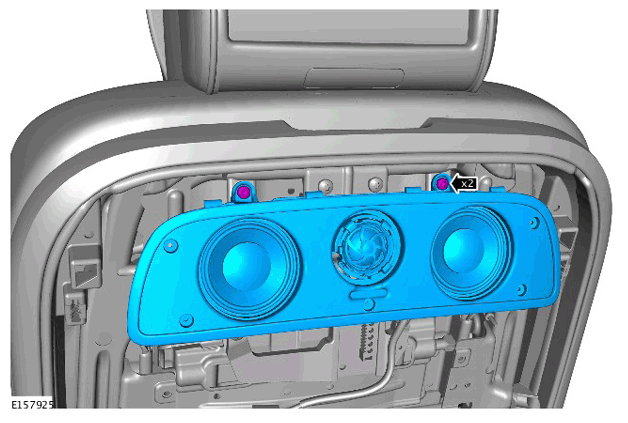

  10. G11294177

    Torque Specification: 4 Nm

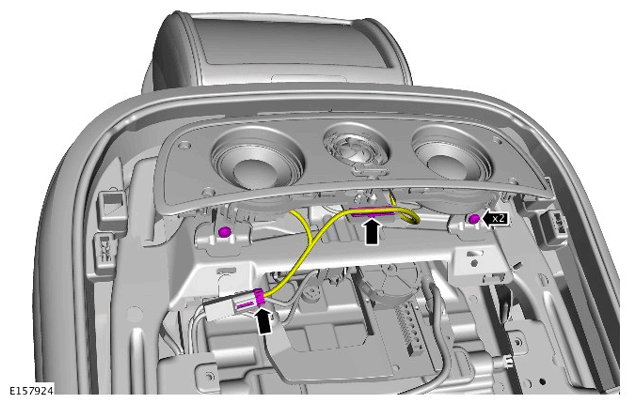

  11. G11294176

    Torque Specification: 4 Nm

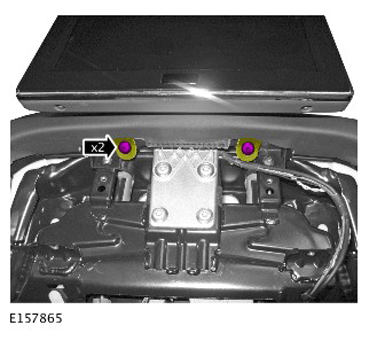

  12. G11294178

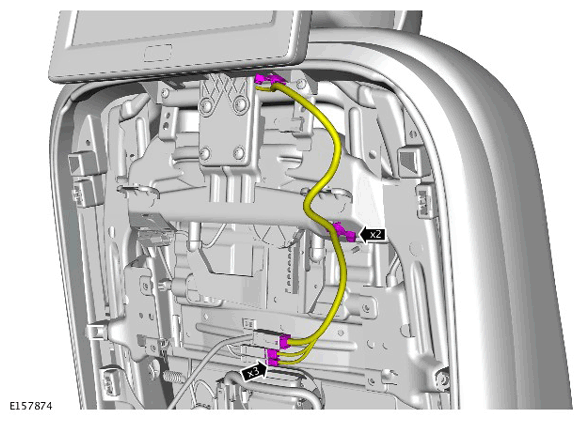

  13. G11294179

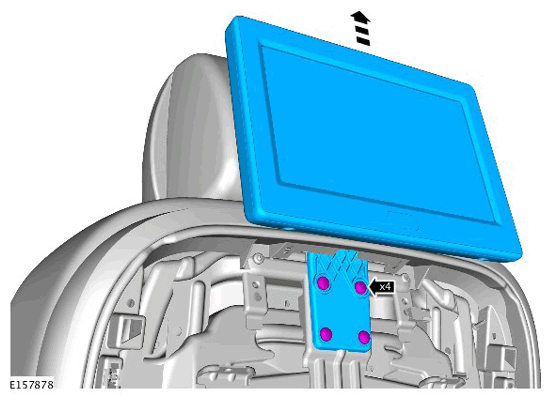

  14. CAUTION: Take extra care not to damage the wiring harnesses.
    G11294180

    Torque Specification: 7 Nm

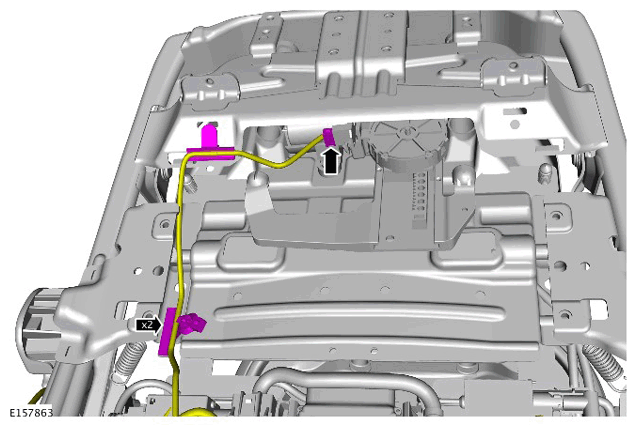

  15. G11289063

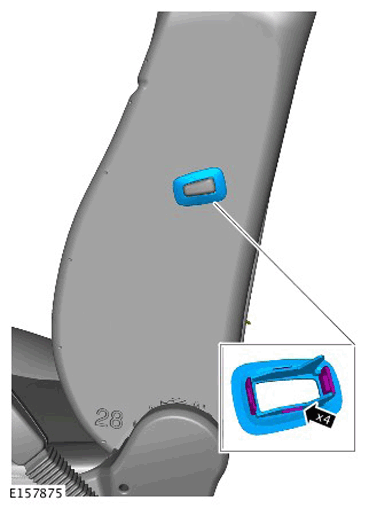

  16. CAUTION: Care must be taken not to damage the component.
    G11288926

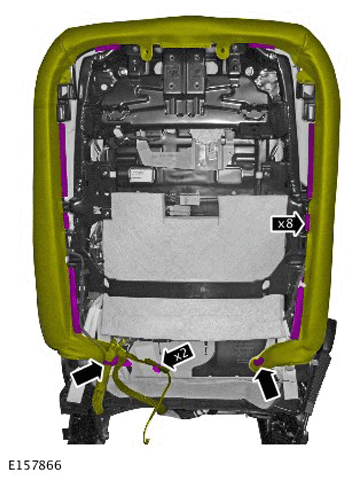

  17. CAUTION: Carefully release either side of the component to avoid damage.
    G11289065

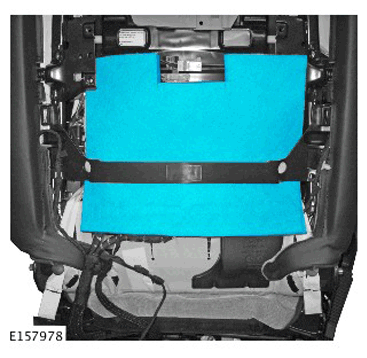

  18. G11288745

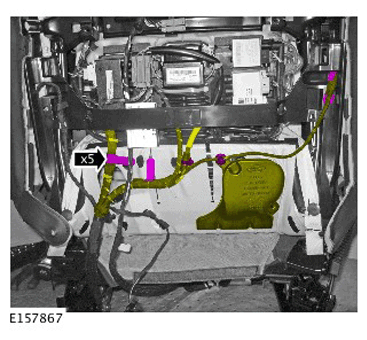

  19. G11288746

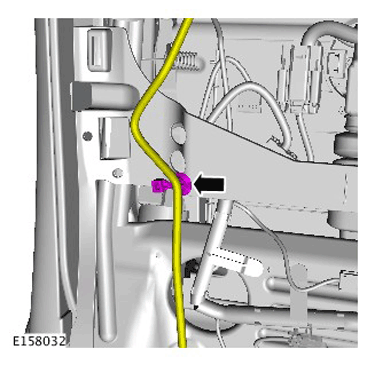

  20. G11289068

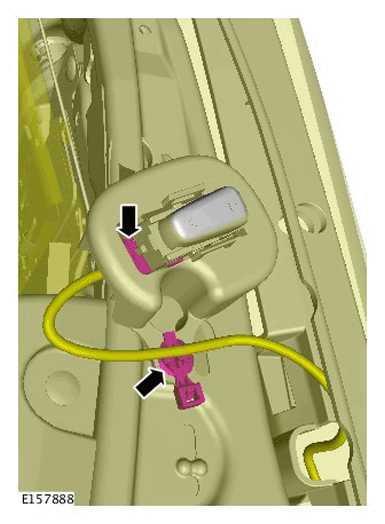

  21. G11288929

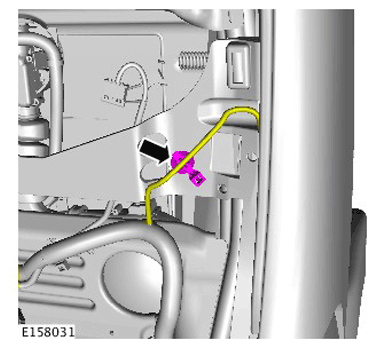

  22. G11289070
  23. WARNING:
    • Do not probe supplemental restraint system (SRS) electrical connectors.
    • The SRS electrical connectors are unique. DO NOT force, or attempt to connect electrical connectors to the wrong sockets.

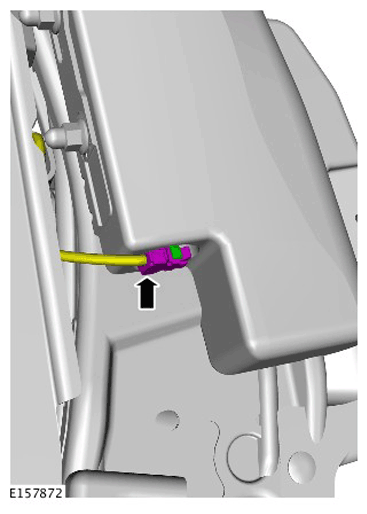

    G11288930

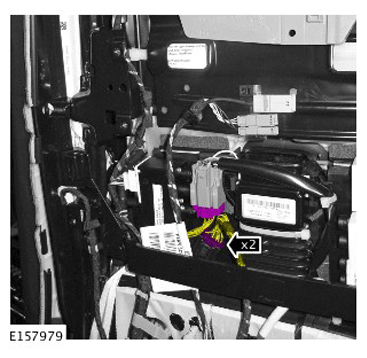

  24. G11289072

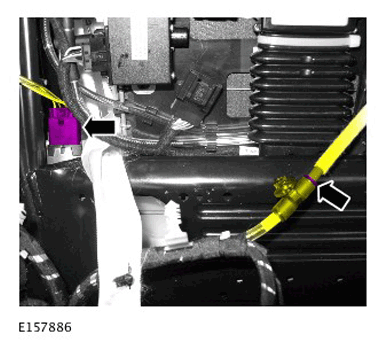

  25. G11289073

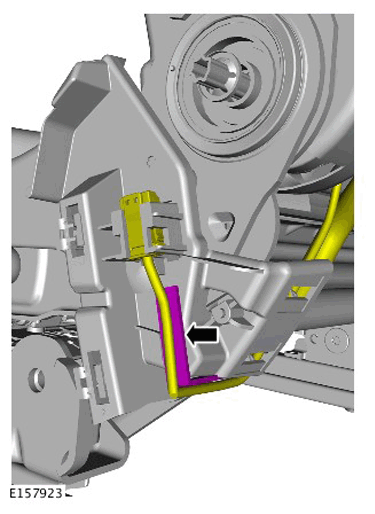

  26. NOTE: LH illustration shown, RH is similar.
    G11289074

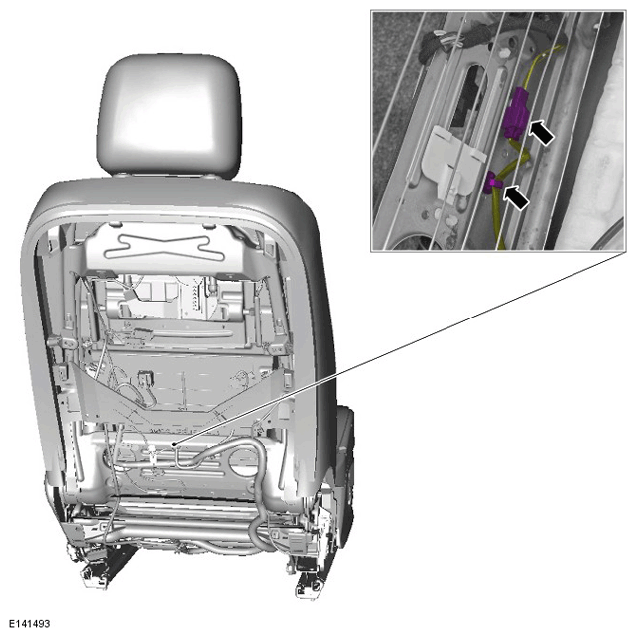

  27. G11289075

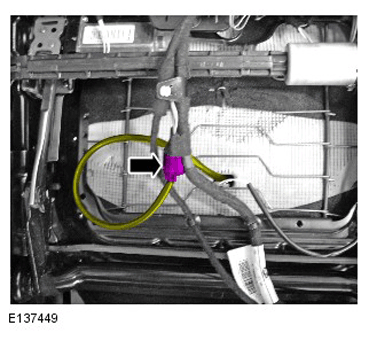

  28. G11288747

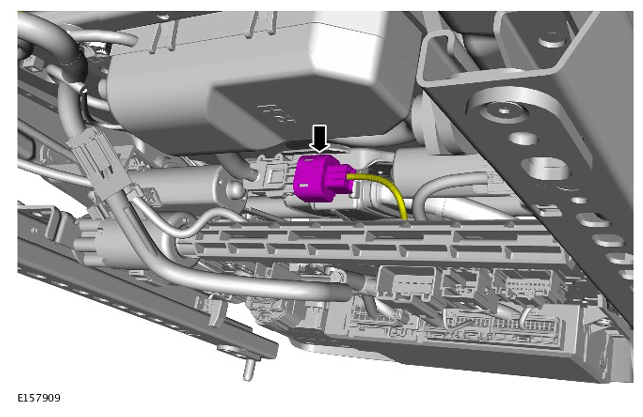

  29. G11288829

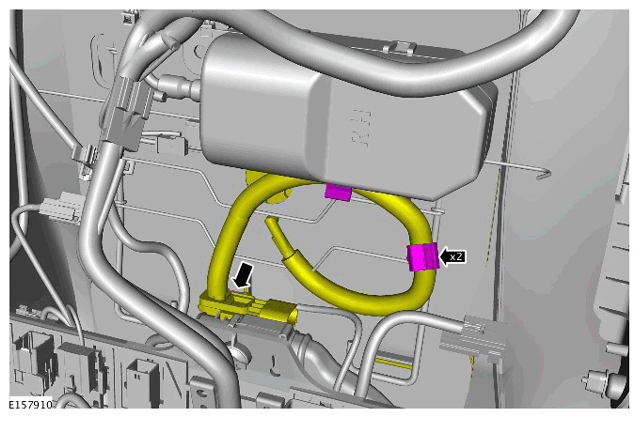

  30. G11288830

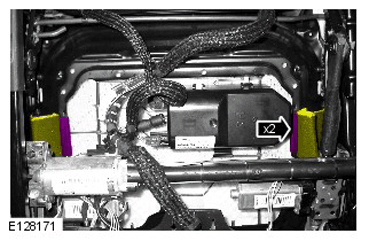

  31. G11288748

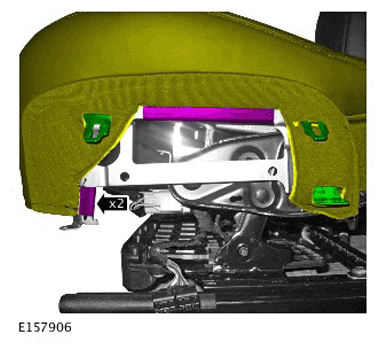

  32. G11288749

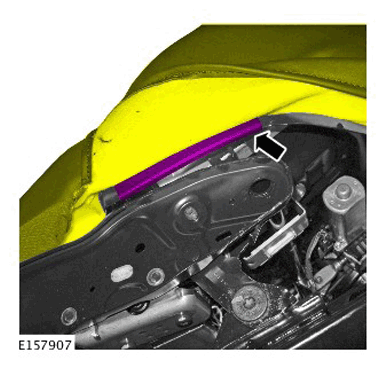

  33. G11288771

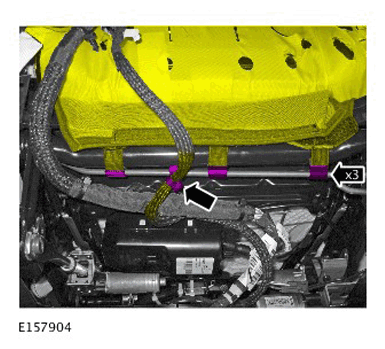

  34. G11288751

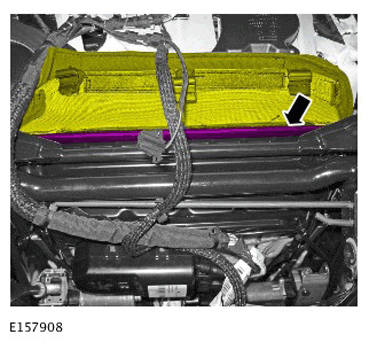

  35. G11288752

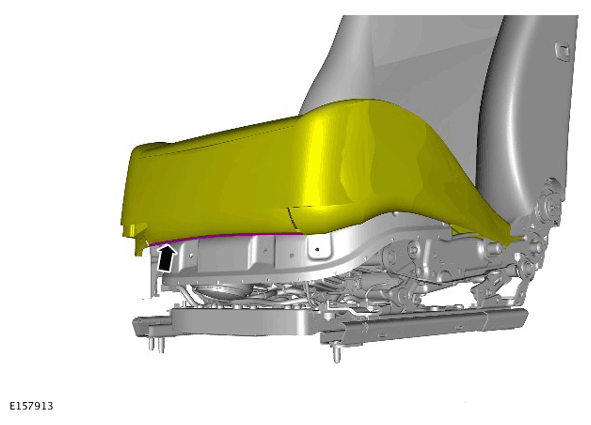

  36. G11288753

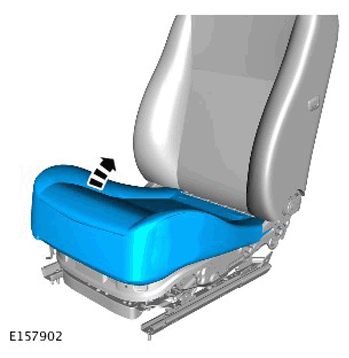

  37. G11288754

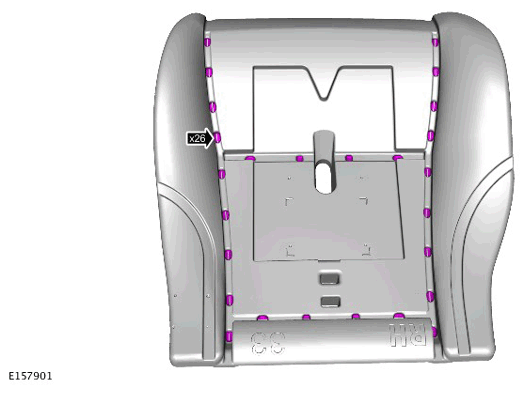

  38. NOTE: Make sure that new hog rings are installed.
    G11288755

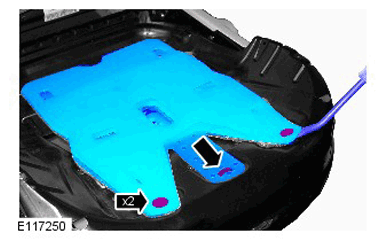

  39. G11289087

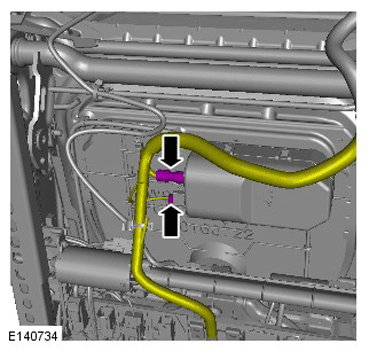

  40. G11289088

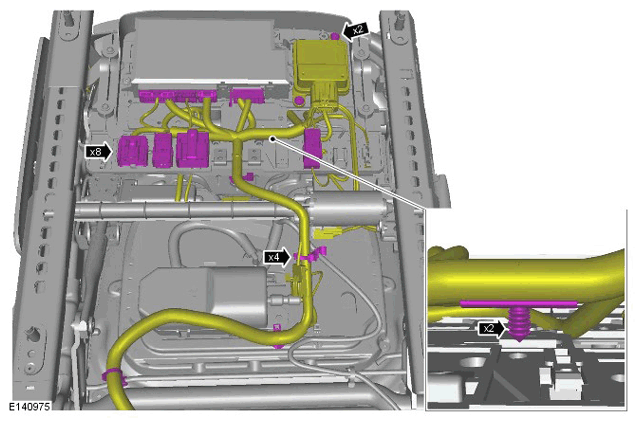

  41. G11289089

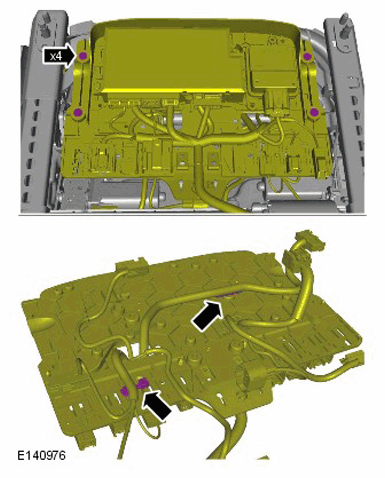

  42. G11289090

    Torque Specification: 8 Nm

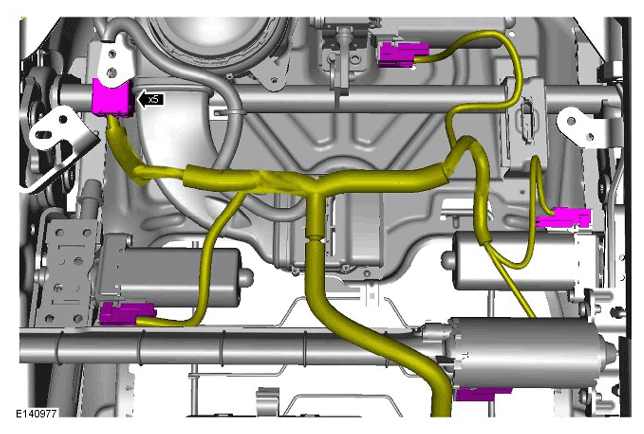

  43. NOTE: Note the position of the wiring harnesses to aid installation.
    G11289091

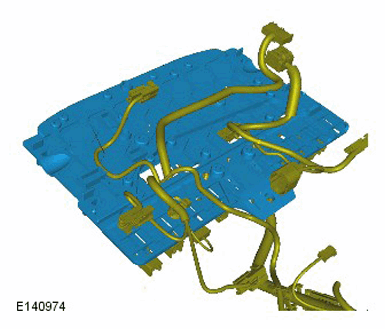

  44. G11289092

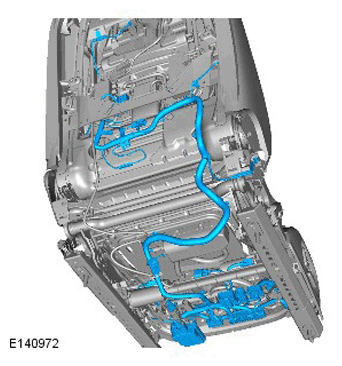

G11289093
