Module-Control-Folding Top Connector End View (CA145)

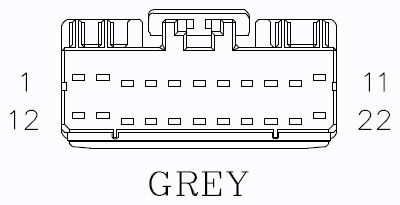

Fig 1: Module-Control-Folding Top Connector End View (CA145)

G11042955

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
