Floor Console Register: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 Jaguar XFR, 2012 Jaguar XF, 2011 Jaguar XFR, 2011 Jaguar XF, and 2010 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove both floor console side trim panels. Refer to FLOOR CONSOLE SIDE TRIM PANEL (G1001140) information.

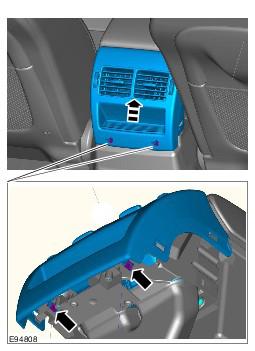

- See figure.
- See figure.
- Remove the 2 clips.
NOTE:
Do not disassemble further if the component is removed for access only.
