Removal And Installation: Removal

1. Remove the cover and disconnect the battery ground cable.

   For additional information, refer to: BATTERY, MOUNTING AND CABLES -- XK/X150 (Specifications).

2. Make the SRS system safe.

   For additional information, refer to: AIRBAG DISPOSAL  (Supplemental Restraint System (SRS) Depowering and Repowering, General Procedures).

3. Remove the rear seat backrest.

   For additional information, refer to: Rear Seat Backrest (Removal and Installation).

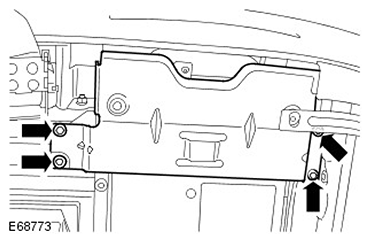

4. Release the rear seat backrest trim panel.

   • Remove the 2 clips.
   • Remove the 2 bolts.
   • Position the rear seat backrest trim panel aside.

5. Remove the rear seat backrest retaining bracket.

   • Remove the 2 nuts and 2 bolts.

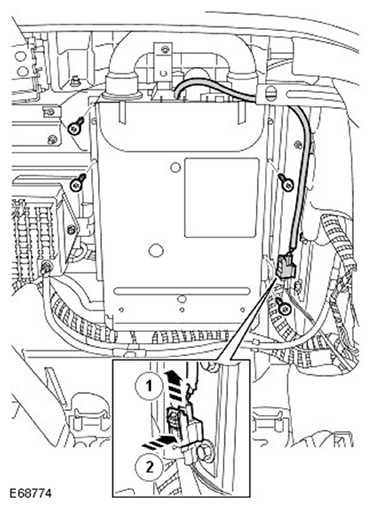

Remove the roll over protection unit.

• Disconnect the electrical connector.
• Remove the 4 Torx bolts.
