Driver Side Register: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 Jaguar XFR, 2012 Jaguar XF, 2011 Jaguar XFR, 2011 Jaguar XF, and 2010 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not manually open the registers. Failure to follow this instruction may result in damage to the internal components.
NOTE: If the registers are set to 'Automatic' mode and one or more are disconnected during an ignition cycle, a vehicle battery reset may be required to reconnect the affected registers to the LIN BUS.
NOTE: Removal steps in this procedure may contain installation details.

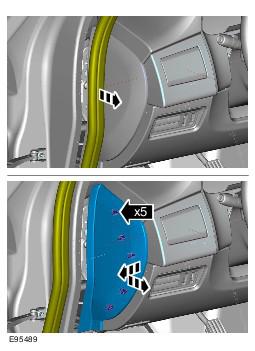

  1. See figure.
    GJ0011065
  2. See figure.
    GJ0010981
  3. See figure.
    GJ0011066
  4. Fully extend and lower the steering column for access.

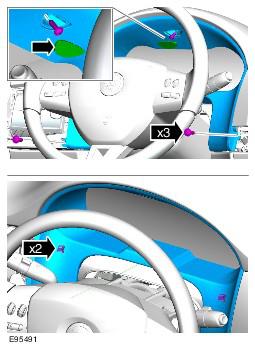

  5. See figure.
    GJ0011031
  6. See figure.
    GJ0011067
  7. See figure.
    GJ0011068
    8. NOTE: Do not disassemble further if the component is removed for access only.
  8. See figure.
    GJ0011069
