Component Location
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 Jaguar XFR, 2012 Jaguar XF, 2011 Jaguar XFR, 2011 Jaguar XF, and 2010 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
right-hand drive (RHD) vehicle shown, left-hand drive (LHD) vehicle similar.

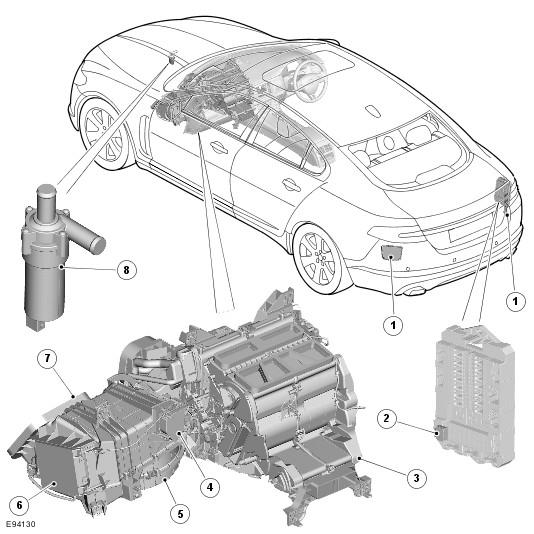

| Item Number | Description |
|---|---|
| 1 | Ventilation outlet |
| 2 | Blower relay (on rear junction box (RJB)) |
| 3 | Heater assembly |
| 4 | Blower control module |
| 5 | Blower |
| 6 | automatic temperature control (ATC) module |
| 7 | Air inlet duct |
