Desiccant Bag: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 Jaguar XFR, 2012 Jaguar XF, 2011 Jaguar XFR, 2011 Jaguar XF, and 2010 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Raise and support the vehicle.
- Refer to Air Conditioning (A/C) System Recovery, Evacuation and Charging information.
- Refer to RADIATOR SPLASH SHIELD (G978689) information.

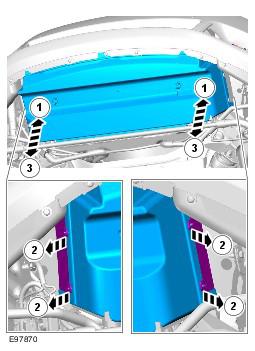

- See figure.
- Torque: 12 Nm.
- See figure.
WARNING:
Make sure to support the vehicle with axle stands.
