Removal And Installation: Removal

NOTE: Removal steps in this procedure may contain installation details.
    WARNING: Make sure to support the vehicle with axle stands.

  1. Raise and support the vehicle.

  2. XK vehicles: For additional information, refer to: Radiator Splash Shield
  3. XKRS2 vehicles: For additional information, refer to: Radiator Splash Shield

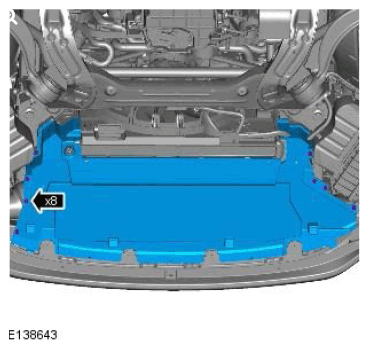

  4. See Figure
    G11549419

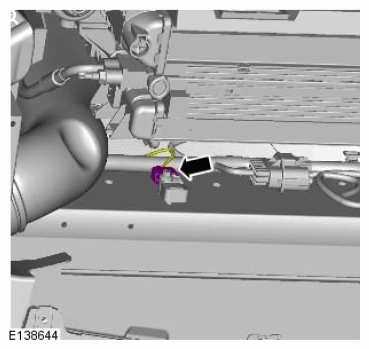

  5. See Figure
    G11549420

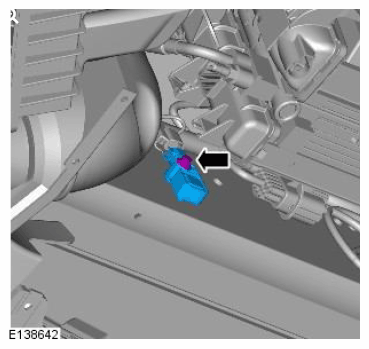

  6. See Figure
    G11549421

    TORQUE SPECIFICATION: 10 Nm
