CLOCKSPRING (G1267558): Installation

  1. CAUTION:
    • Make sure that special tool 211-326 is installed to the clockspring.

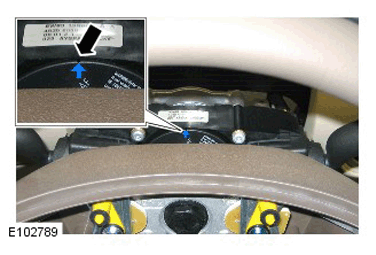

    • Make sure that the arrow on the cassette is centered and pointing vertically (make sure that the steering wheel has remained in the 12 o'clock position and that it has not been turned by +/- 360 degrees)  prior to the steering wheel installation. On removal of the special tool, keep the clockspring cables taught to prevent the cassette moving from the set position. Failure to follow this instruction may result in damage to the component.
    • Make sure that the road wheels are in the straight ahead position, failure to follow this instruction may result in damage to the vehicle.
    G11290575

    To install, reverse the removal procedure.
