Module-Damping-Continuously Variable Connector End View (C4CD01A)

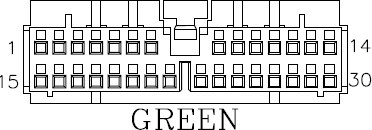

Fig 1: Module-Damping-Continuously Variable Connector End View (C4CD01A)

G11027961

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
