Global Positioning System Signal Splitter
The GPS signal splitter is located on the underside of the rear roof panel, below the roof pod. Two clips on the GPS signal splitter provide for attachment to a bracket. The GPS signal splitter is only fitted to vehicles with the Telematics systems.
The GPS signal splitter shares the GNSS signal (GPS and GLONASS) from the roof pod antenna with the telematics control module and the Infotainment Master Controller (IMC).

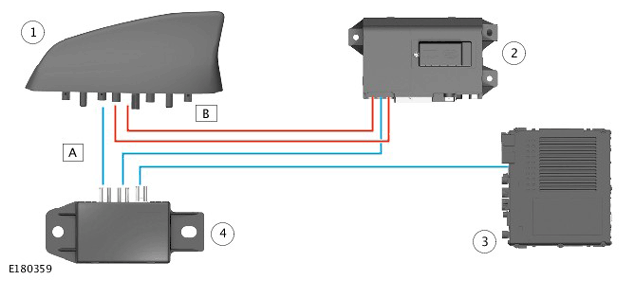

| ITEM | DESCRIPTION |
|---|---|
| A | GPS signal |
| B | GSM signal |
| 1 | Roof pod (GPS/GSM antenna) |
| 2 | Telematics Control Module (TCU) |
| 3 | Infotainment Master Controller (IMC) |
| 4 | GPS signal splitter |
