PDI Steering Wheel Alignment And Geometry Questionnaire (SSM54977)

Publication date: 2012-11-09
Reference number: SSM54977

PDI STEERING WHEEL ALIGNMENT AND GEOMETRY QUESTIONNAIRE

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSM54977, Date of Issue: November 09, 2012

JAGUAR:	XK/X150; XJ/X351; XF/X250
CATEGORY:	Chassis

SERVICE INFORMATION

Symptom 303000 Steering/Handling

ISSUE

Jaguar Cars are receiving Warranty claims for Steering Wheel Alignment and Geometry checks performed on Vehicles during PDI.

CAUSE

Engineering are currently investigating these reports and to assist with defining any potential root cause (s), have developed the attached Steering Wheel Alignment and Geometry questionnaire.

ACTION

Content

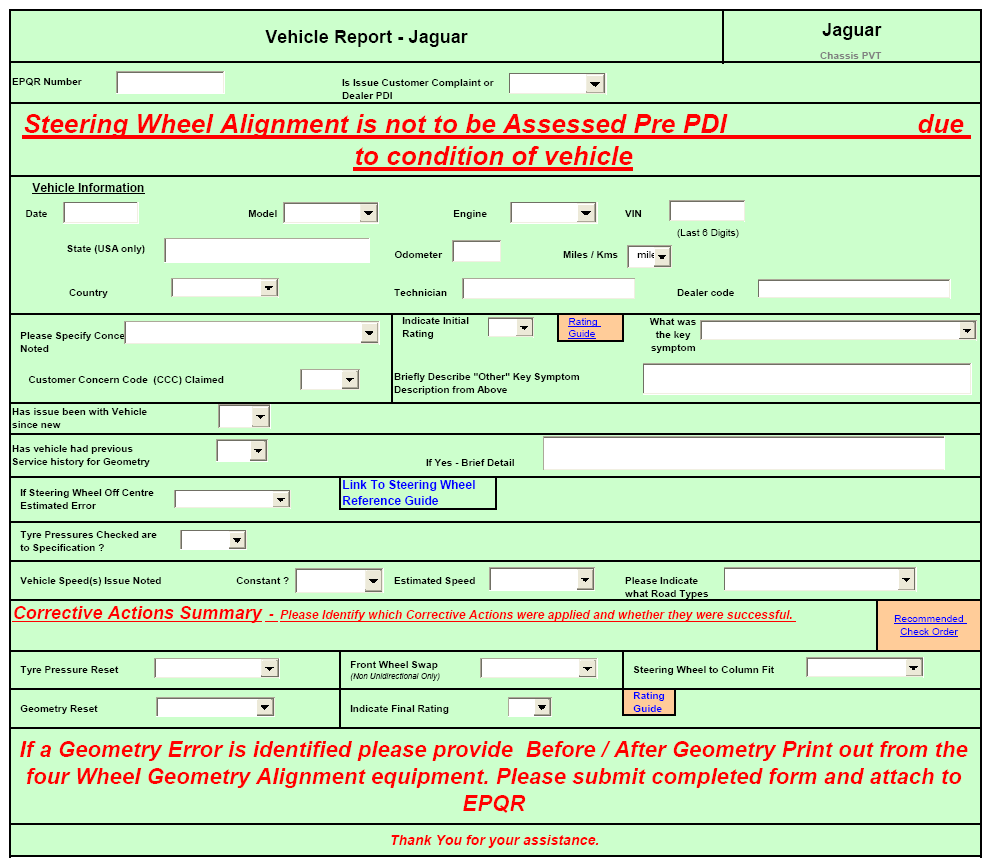

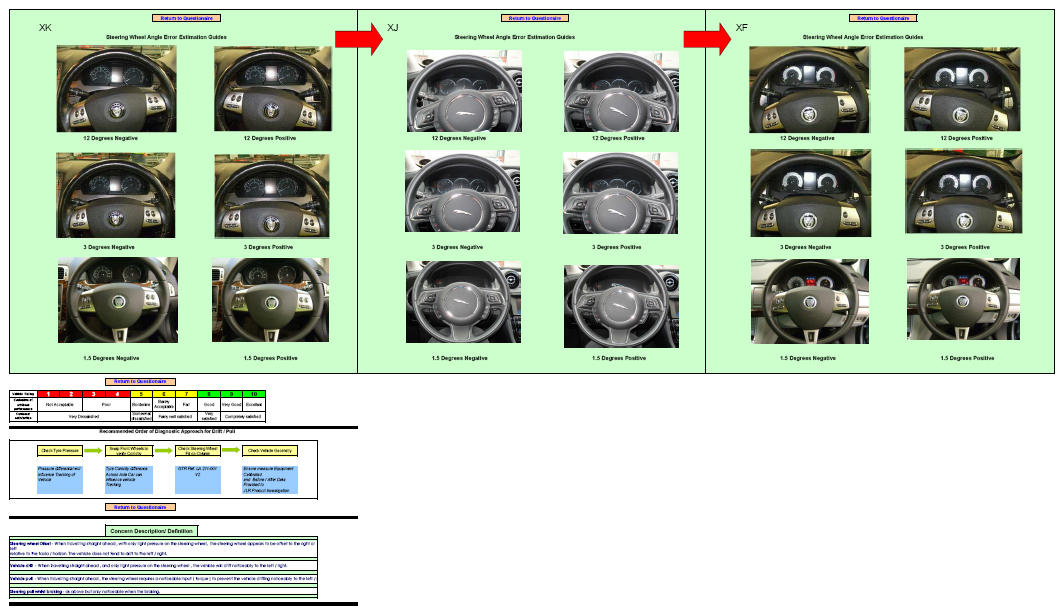

Please complete the Steering Wheel alignment and Geometry Questionnaire below and submit via the relevant page as an EPQR after the below assured VIN's ONLY if an alignment issue was found to be present during the PDI procedure. EPQR's are not required for Vehicles built before these VIN's.

XJ V38913

XF S59415

XK B50211

Please note: Jaguar Cars believe all Vehicles after these VIN's are to the required Specification. Please only check alignment if the Steering is visibly mis-aligned after PDI Road test.

NOTE: You may have to enable macro's to allow full use of the attached form
