Module-Parking Aid Control Connector End View (C4MP01A)

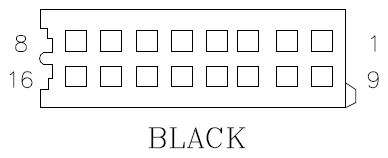

Fig 1: Module-Parking Aid Control Connector End View (C4MP01A)

G11021147

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
