Navigation System Module (G1057934): Removal

  1. Disconnect the battery ground cable.

    For additional information, refer to: Battery Disconnect and Connect (Battery, Mounting and Cables, General Procedures).

  2. Remove the LH luggage compartment side trim panel.

    For additional information, refer to: Loadspace Left Trim Panel - 4-Door (Interior Trim and Ornamentation, Removal and Installation).

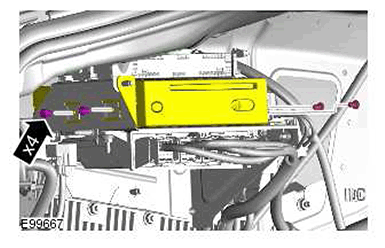

  3. G11422604

    Release the navigation system module.

  4. G11422605

    Remove the navigation system module.
