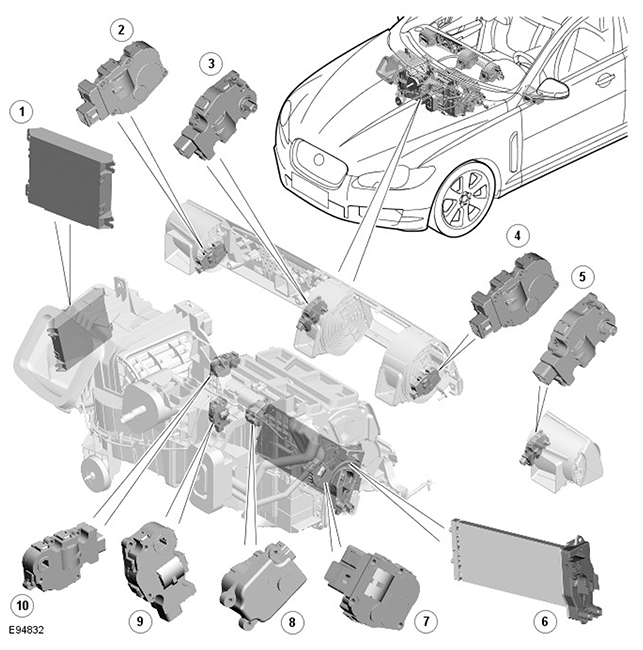

COMPONENT LOCATION - LIN BUS (Sheet 2 of 2)
| ITEM | DESCRIPTION |
|---|---|
|
NOTE:
LHD vehicle shown
|
|
| 1 | ATC (automatic temperature control) module |
| 2 | RH (right-hand) outer face level vent |
| 3 | RH inner face level vent |
| 4 | LH (left-hand) inner face level vent |
| 5 | LH outer face level vent |
| 6 | Electric booster heater |
| 7 | Stepper motor - LH temperature blend |
| 8 | Stepper motor - windshield defrost |
| 9 | Stepper motor - RH temperature blend |
| 10 | Stepper motor - face/feet |
