Passive Entry System

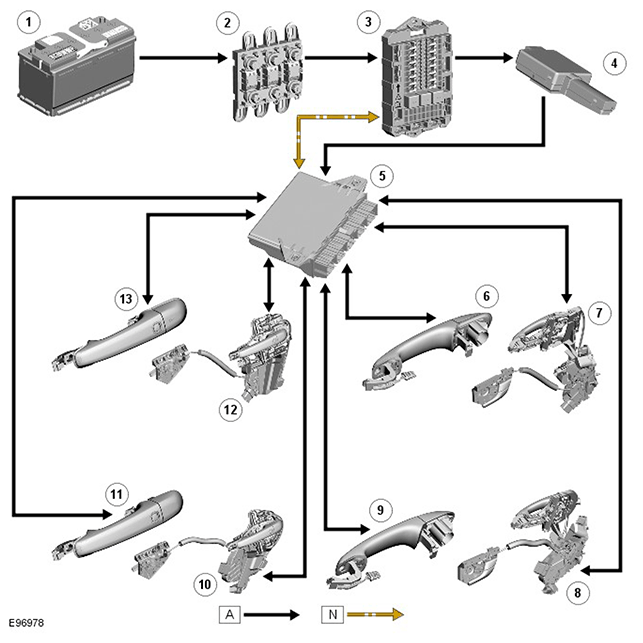

G11423329
ITEM DESCRIPTION
1 Battery
2 BJB
3 CJB
4 RF receiver
5 Keyless Vehicle Module (KVM)
6 Passenger door handle
7 Passenger door latch
8 Rear right door latch
9 Rear right door handle
10 Rear left door latch
11 Rear left door handle
12 Driver door latch
13 Driver door handle
