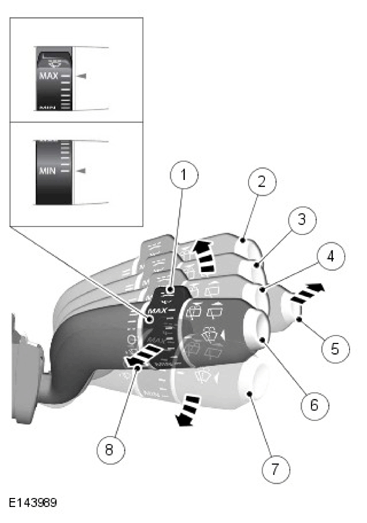

Wiper Control Switch
| ITEM | DESCRIPTION |
|---|---|
| 1 | Rotate control - rain sensor maximum and minimum sensitivity |
| 2 | Fast speed wipe |
| 3 | Normal speed wipe |
| 4 | Rain sensor activated wipe |
| 5 | Rear window wipe (Sportbrake only) |
| 6 | Windshield washer button |
| 7 | Single wipe |
| 8 | Rear window wash (Sportbrake only) |
The wiper control switch is located on the RH steering column multifunction switch.
All wiper functions are connected to the IC by a resistor or series of resistors within the switch. The IC uses the returned current to determine the selected function.
