Occupant Classification Sensor: Installation

    CAUTION: The front passenger seat occupant classification sensor is available only as a service kit. No attempt should be made to replace individual components. Failure to follow this instruction may result in personal injury.
  1. See figure
    GJ0022498
    2. NOTE: Make sure that new hog rings are installed.
    NOTE: Use hog ring pliers to close the hog rings. Do not use any other tool. The hog rings must be closed to overlap as illustrated.
  2. See figure
    GJ0022499
  3. See figure
    GJ0022500
  4. See figure
    GJ0022501
  5. See figure
    GJ0025689
  6. See figure
    GJ0025690
  7. See figure
    GJ0025691
    8. NOTE: Take note of the routing.

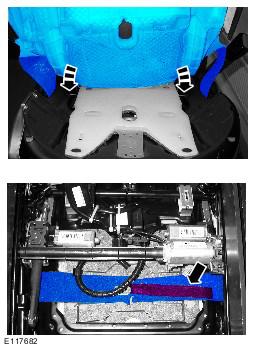

  8. See figure
    GJ0025692
    9. NOTE: Make sure that the harness is routed to the position noted on removal.
  9. See figure
    GJ0022487
    10. CAUTION: Take extra care not to damage the clips.

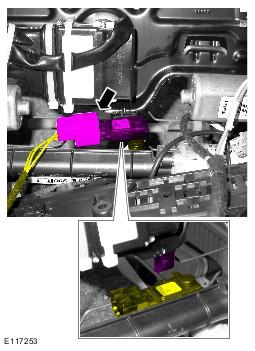

  10. See figure
    GJ0022489
  11. See figure

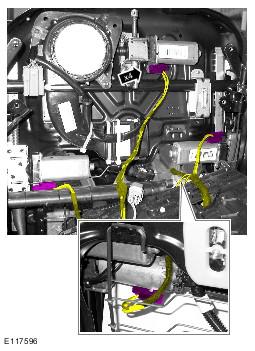

    GJ0025683
    12. NOTE: Make sure that the harness is routed to the position noted on removal.
  12. Torque: 4 Nm

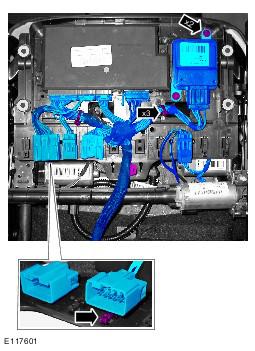

    GJ0025688
  13. Torque: 9 Nm
    GJ0025681
    14. WARNING: Do not probe supplemental restraint system (SRS) electrical connectors.
    NOTE: Make sure that the harness is routed to the position noted on removal.
  14. See figure
    GJ0025686
  15. See figure
    GJ0025687
  16. See figure
    GJ0025685
  17. See figure
    GJ0025693
    18. NOTE: An audible click is heard when the clips are fully latched.
    NOTE: Make sure the electrical connector is securely connected.
  18. See figure
    GJ0025680
  19. Torque: 1.3 Nm
    GJ0022481
  20. Refer to Front Seat Backrest Cover information.
  21. Refer to BATTERY DISCONNECT AND CONNECT information.
