4.1.2 Monitoring Structure

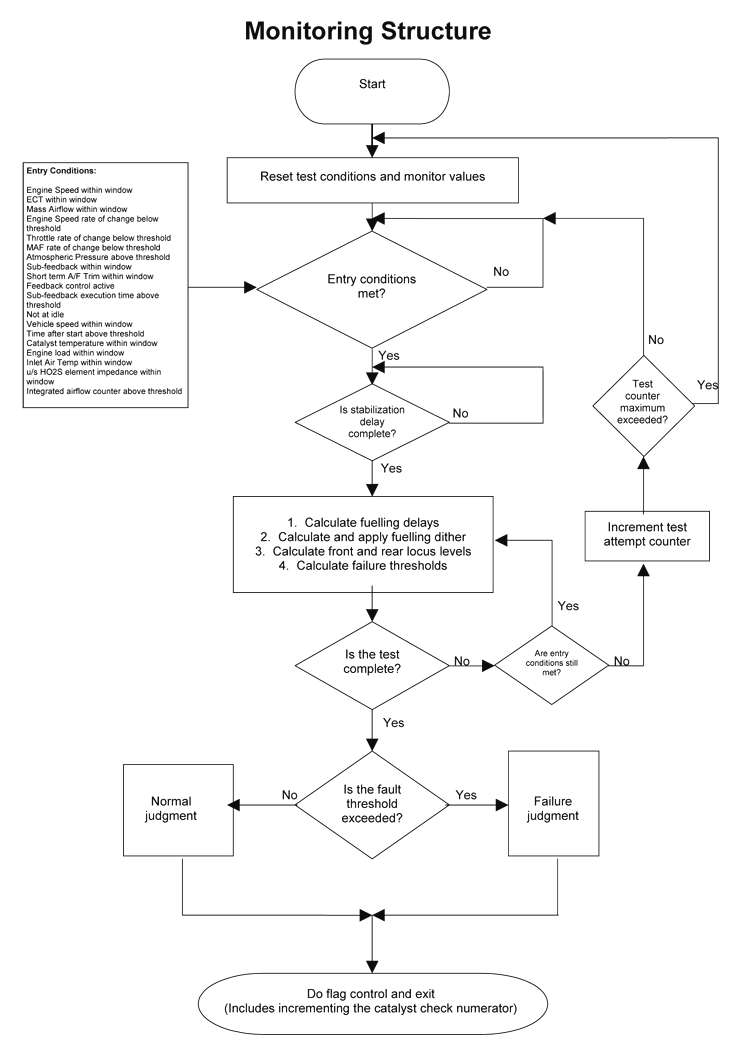

Fig 1: Monitoring Structure
G06421927Courtesy of JAGUAR CARS, INC.
Fig 2: Catalyst Monitoring Operation (1 Of 2) (P0420, P0430)
G06421928Courtesy of JAGUAR CARS, INC.

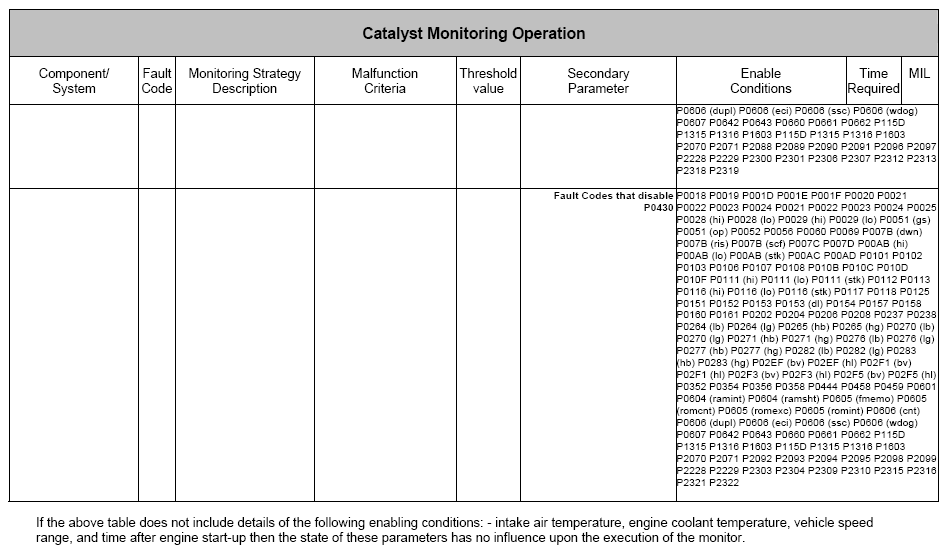

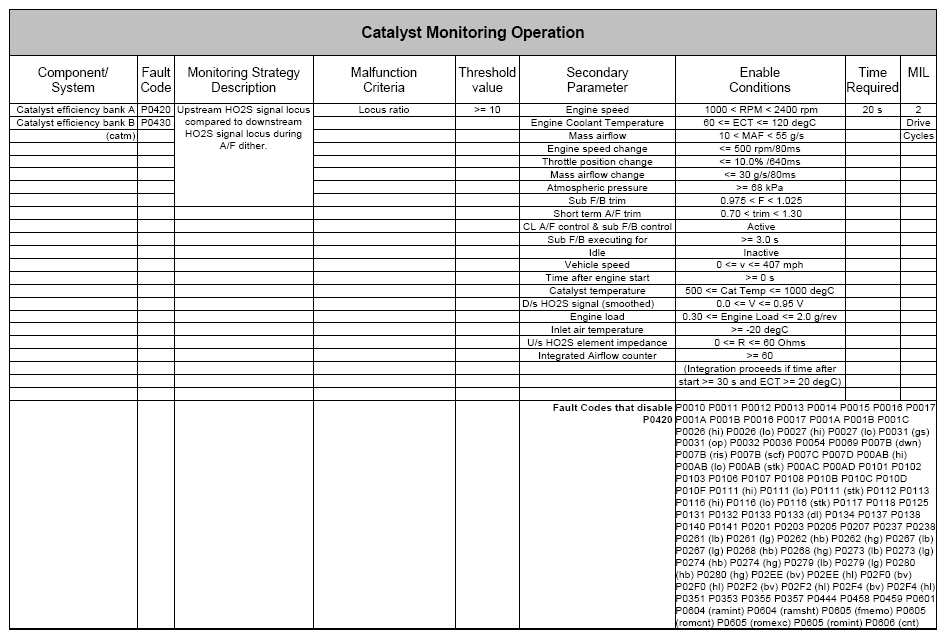

Fig 3: Catalyst Monitoring Operation (2 Of 2)
G06421929Courtesy of JAGUAR CARS, INC.
