Navigation Map Updates Are Not Available To Download. INCONTROL Touch Only (SSM73069)

Publication date: 2016-11-25
Reference number: SSM73069

NAVIGATION MAP UPDATES ARE NOT AVAILABLE TO DOWNLOAD. INCONTROL TOUCH ONLY

TECHNICAL SERVICE BULLETIN

Reference Number(s): SSM73069, Date of Issue: 25-Nov-2016

JAGUAR:	F-PACE/X761; F-TYPE/X152; XE/X760; XF/X260
SECTION:	Electrical

Symptom 207000 Entertainment Systems

Attachments navigation sim card.pdf (navigation sim card.pdf)

Navigation Map updates are not available to download.

Software

This issue is currently under investigation.

Until resolved if a customer requests a map update you will need to replace the SD card.

Please ensure you fit the latest C level part (Part number ending with a letter "C").

China only the part number will end in a B

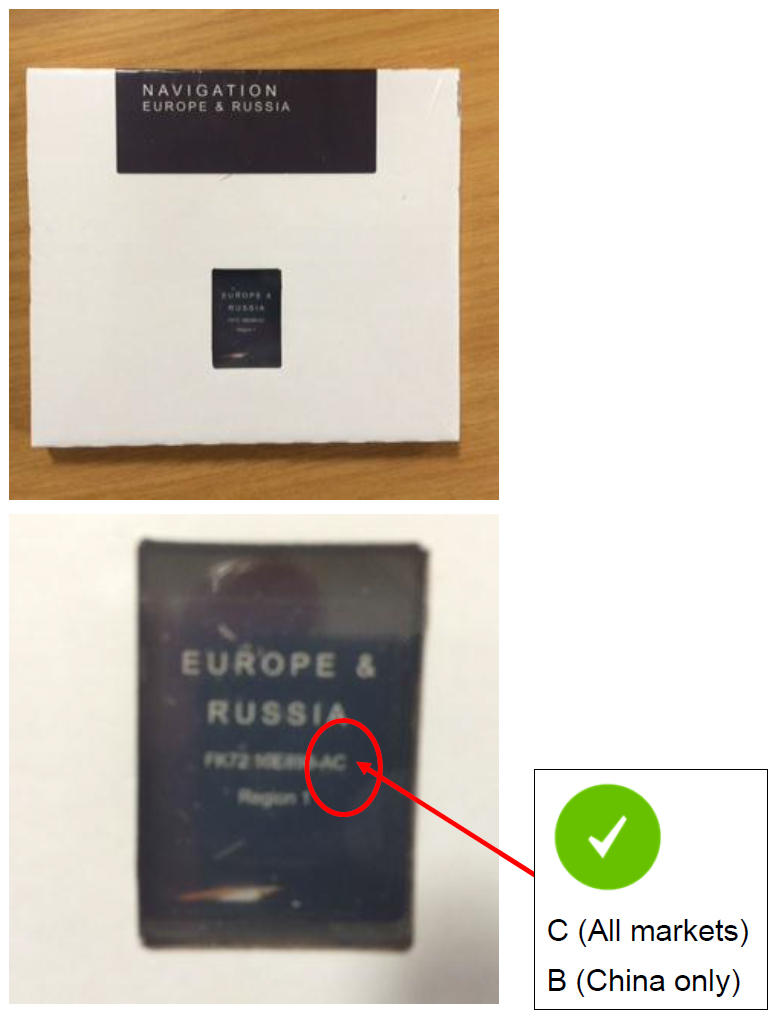

See attachment (example region)

NOTE: If the sd card currently fitted to the vehicle is at level C (B for China) please do not change as this contains the very latest level maps.
