4.6.2 Monitoring Structure

Fig 1: Monitoring Structure
G06421818Courtesy of JAGUAR CARS, INC.

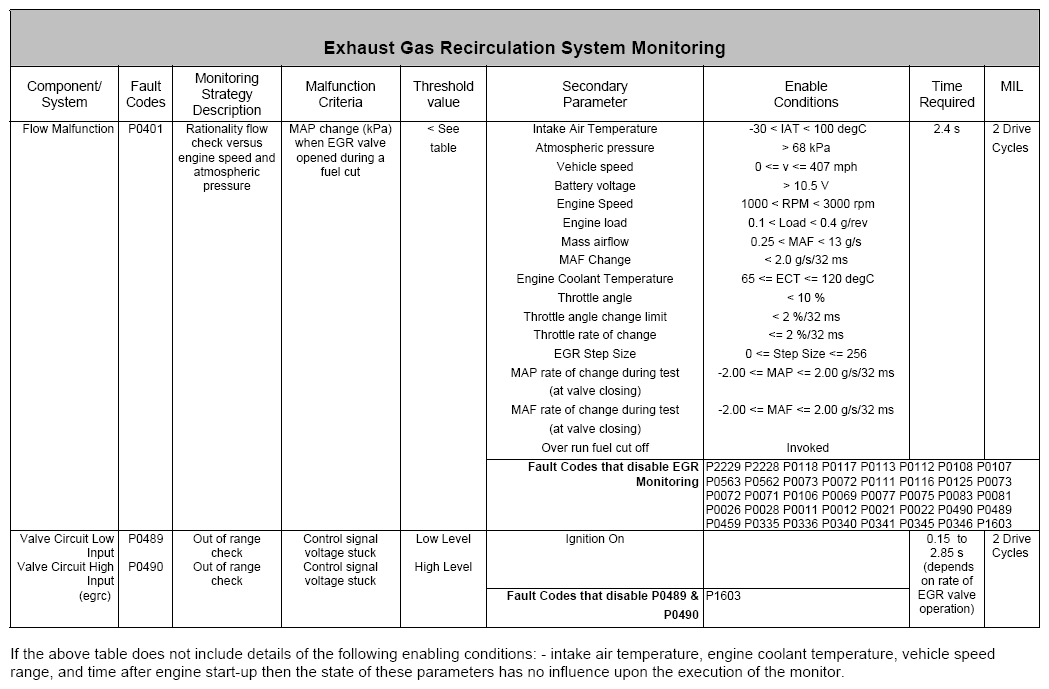

Fig 2: Exhaust Gas Recirculation System Monitoring (Diagnostic Trouble Codes P0401, P0489, P0490)
G06421819Courtesy of JAGUAR CARS, INC.
Fig 3: Engine Speed Chart
G06421820Courtesy of JAGUAR CARS, INC.
