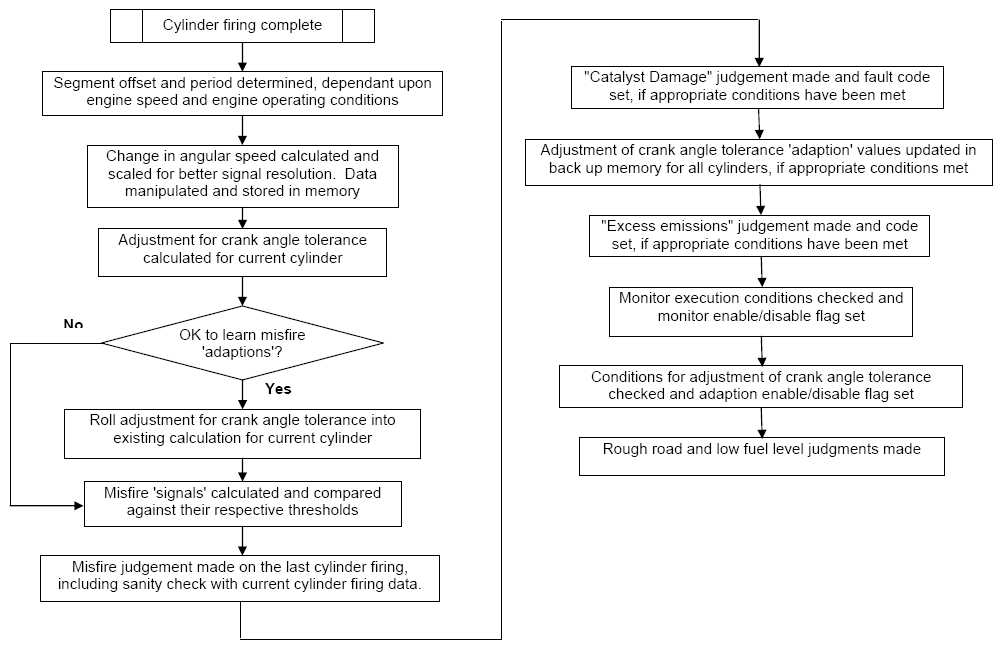

Home >> Jaguar >> 2010 >> XF Base >> Repair and Diagnosis >> Engine Performance >> System >> On Board Diagnostics - 4.2L V8 >> 4 Onboard Monitoring >> 4.2 Misfire Monitoring >> 4.2.2 Misfire Monitor Process Hierarchy
