4.19.3 Monitoring Structure

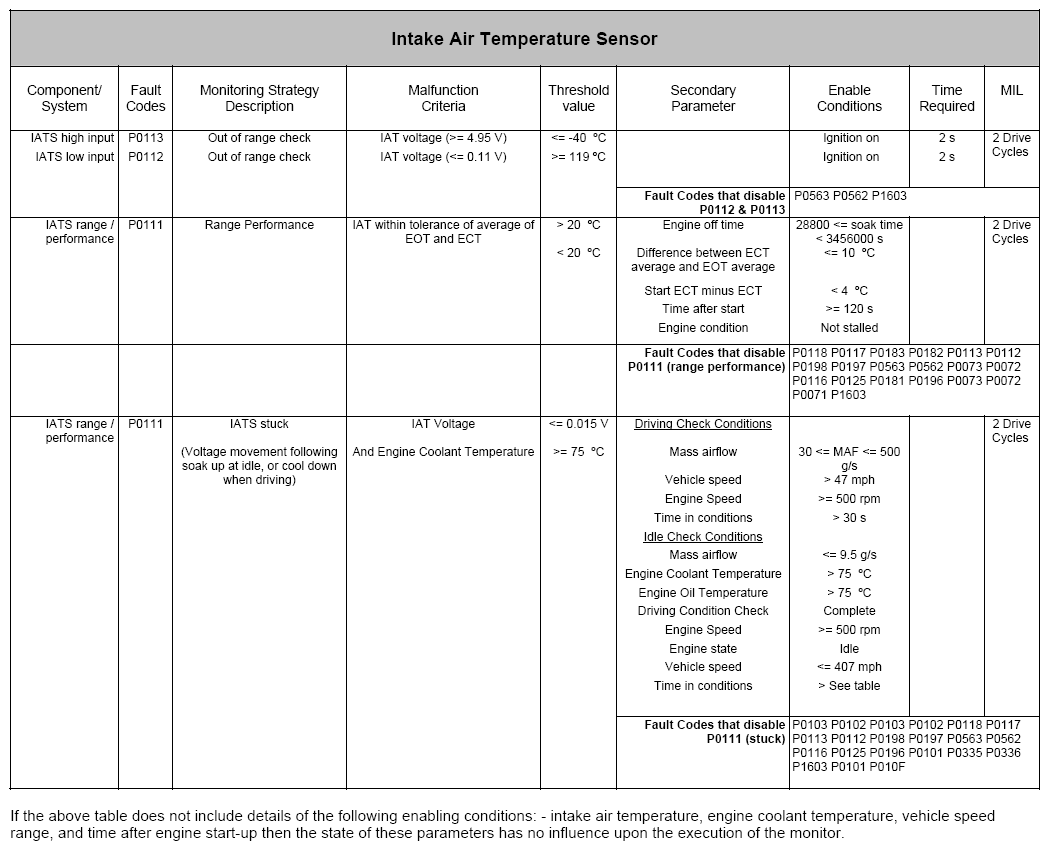

Fig 1: Intake Air Temperature Sensor (Diagnostic Trouble Codes P0111, P0112, P0113)
G06421858Courtesy of JAGUAR CARS, INC.
Fig 2: Intake Air Temperature Sensor Range Performance
G06421859Courtesy of JAGUAR CARS, INC.
