4.19 Intake Air Temperature Sensor: Notes

The engine has a single air temperature sensor incorporated in the mass air flow sensor.

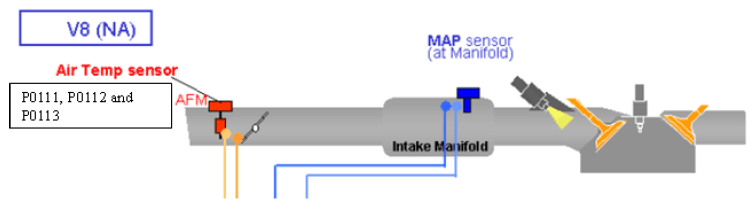

Fig 1: Identifying Intake Air Temperature Sensor Location
G06421857Courtesy of JAGUAR CARS, INC.
