Selector Lever - Removal and Installation: Removal

  1. Remove the rear seat armrest. Refer to Rear Seat Armrest article.
  2. Remove the floor console veneer trim panel. Refer to Floor Console Finish Panel article.

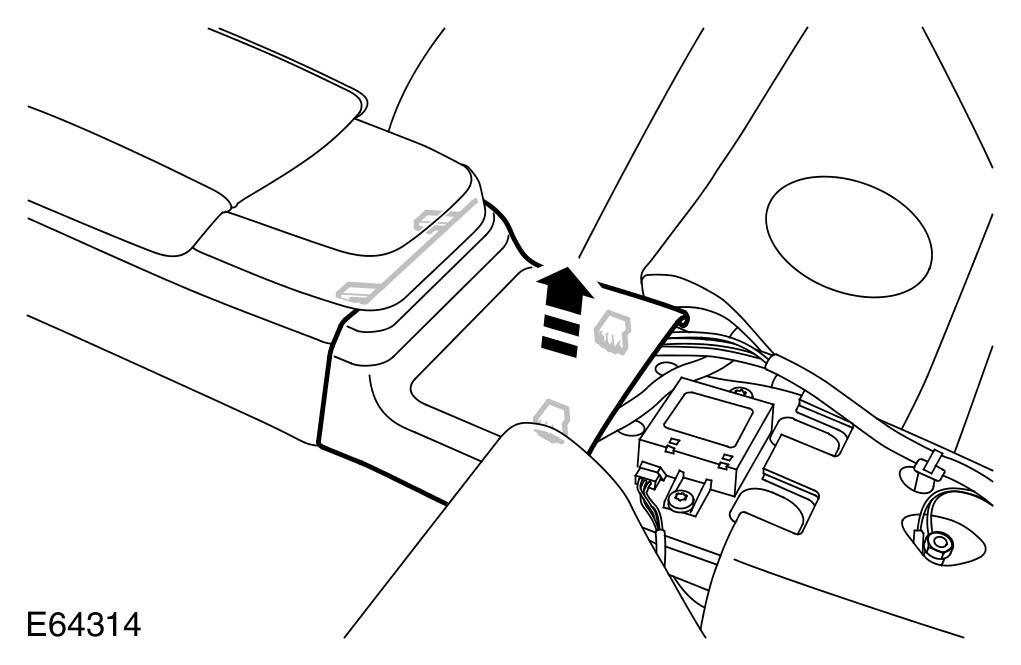

    GJ0009282Courtesy of JAGUAR CARS, INC.
  3. Remove the floor console rear panel.
    • Carefully release the 2 clips.
    GJ0009283Courtesy of JAGUAR CARS, INC.
  4. Remove the floor console side panel trim.
    • Remove the 2 Torx bolts.
    • Carefully release 11 clips.
    • Repeat the procedure and remove the opposite hand.

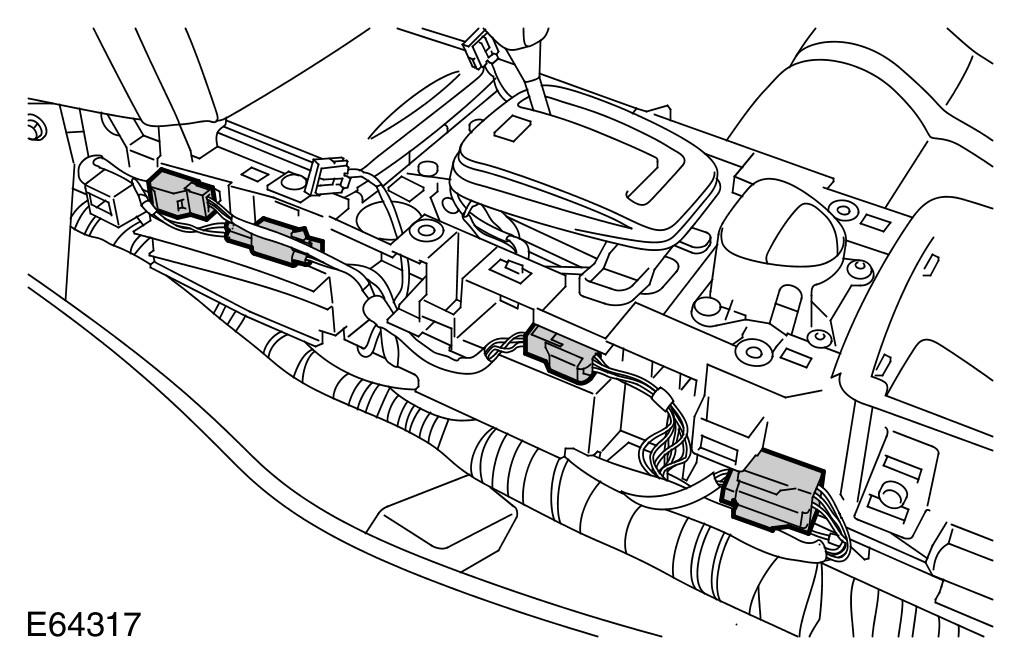

    GJ0009285Courtesy of JAGUAR CARS, INC.
  5. Release the LH side floor console electrical harness connector blocks.
    • Carefully release the 4 clips.

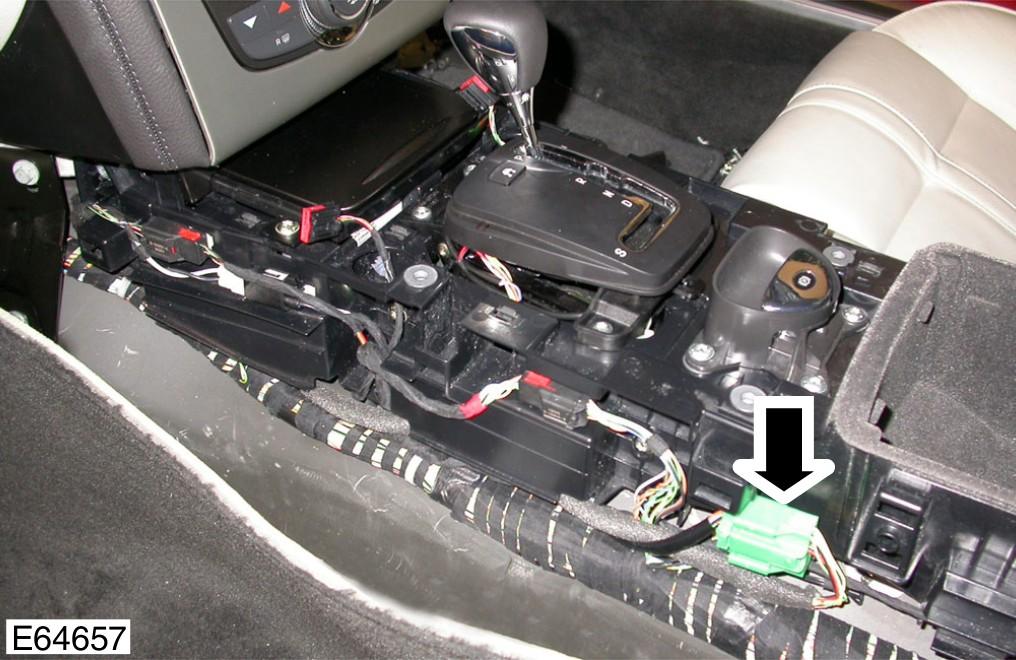

    GJ0009462Courtesy of JAGUAR CARS, INC.
  6. Disconnect the gear selector assembly electrical connector.

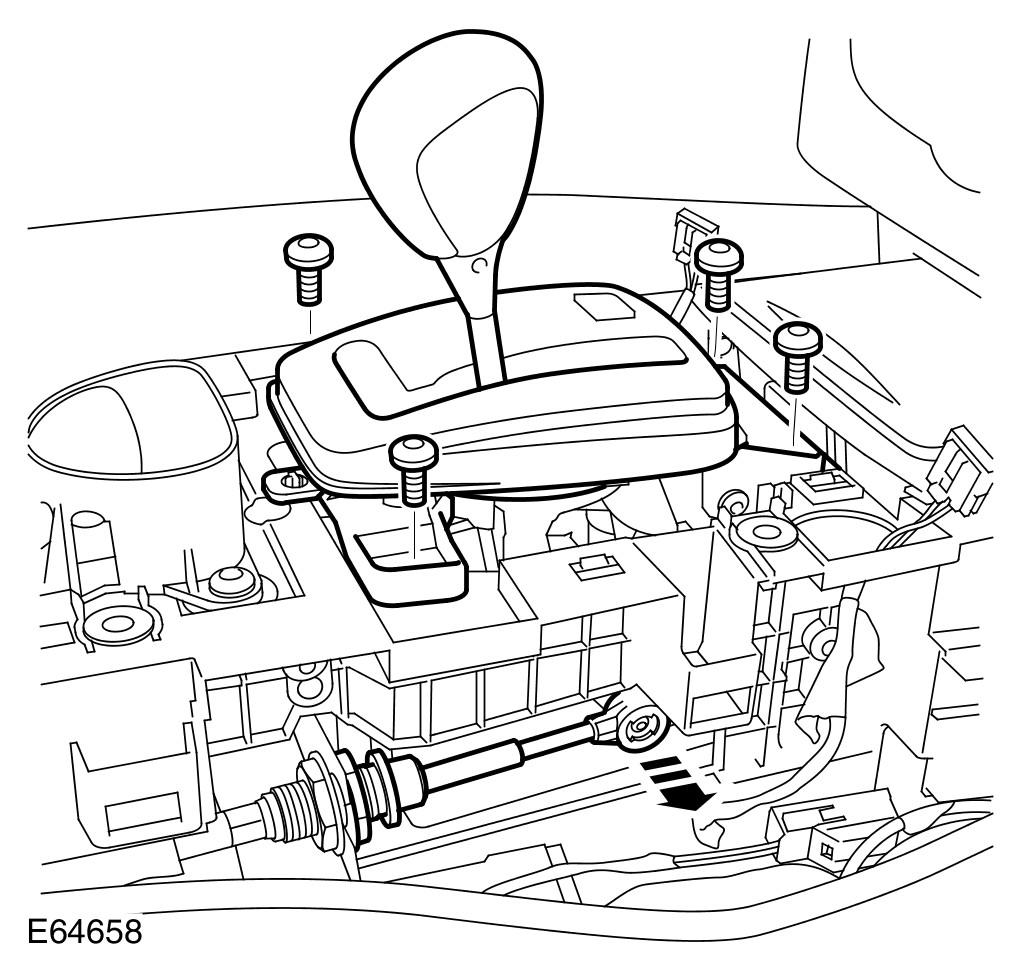

    GJ0009463Courtesy of JAGUAR CARS, INC.
  7. Remove the gear selector assembly.
    • Carefully disconnect the selector cable ball joint.
    • Remove the 4 Torx bolts.
    • Release the electrical harness.
