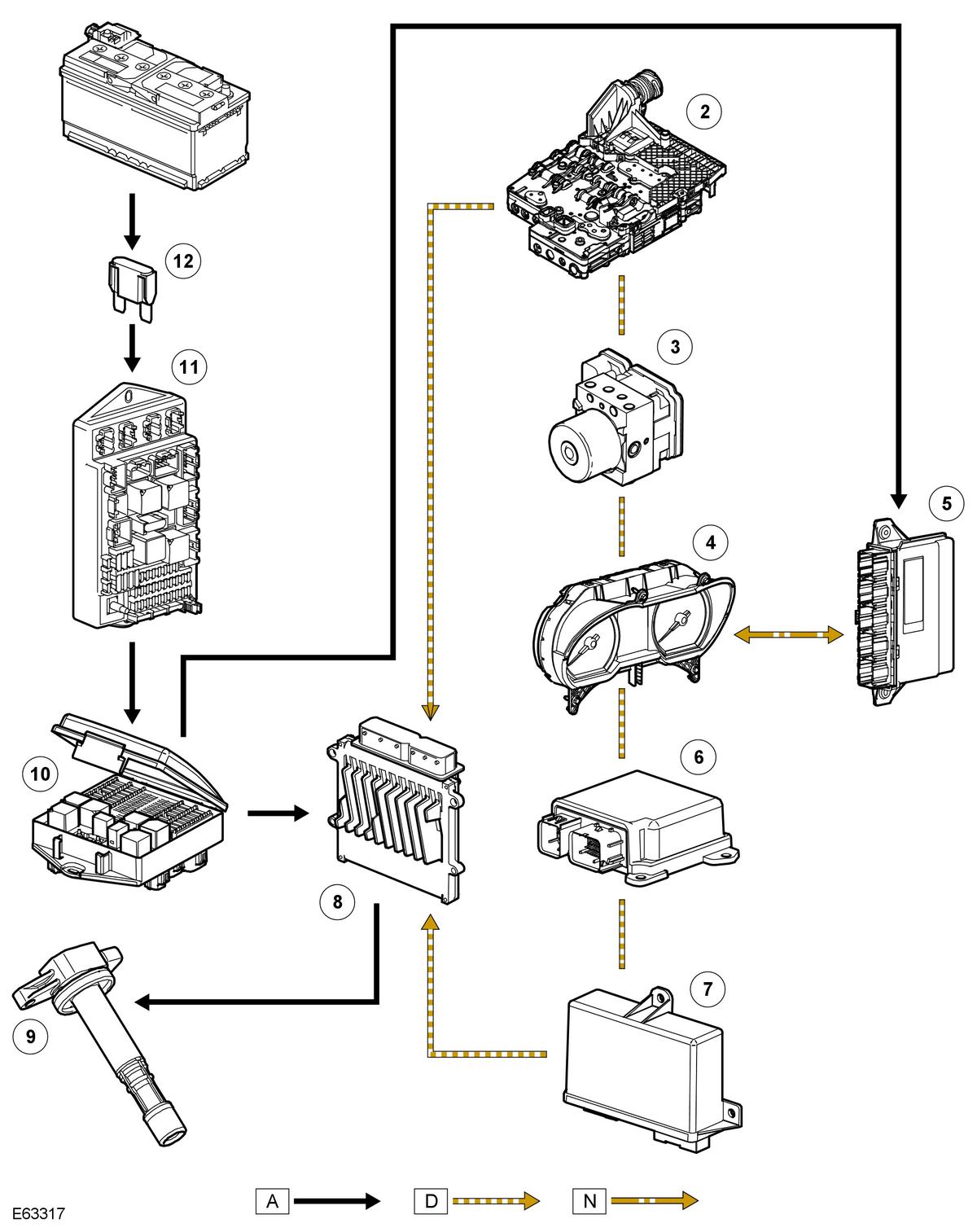

Control Diagram
Courtesy of JAGUAR CARS, INC.
| Item Number |
Description |
| 1 |
Battery |
| 2 |
TCM |
| 3 |
ABS control module |
| 4 |
Instrument cluster |
| 5 |
Keyless vehicle module |
| 6 |
RCM |
| 7 |
Park brake module |
| 8 |
ECM |
| 9 |
Ignition coils (8 off) |
| 10 |
Auxiliary junction box |
| 11 |
CJB |
| 12 |
Mega fuse |
NOTE:
A = Hardwired connections; D = High speed CAN bus; N=Medium speed CAN bus
