Driver's Fuse Box

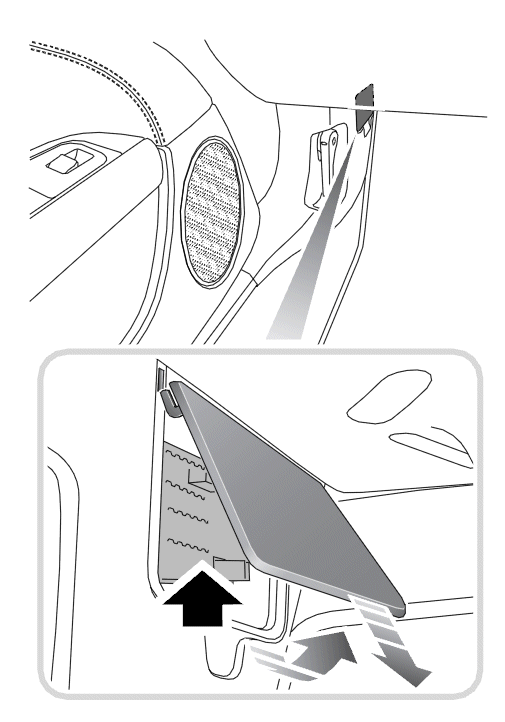

The driver's side fuse box is located under the left-hand side trim panel in the footwell. To access the fuse box remove left-hand side trim panel fuse box cover. See Fig 1.

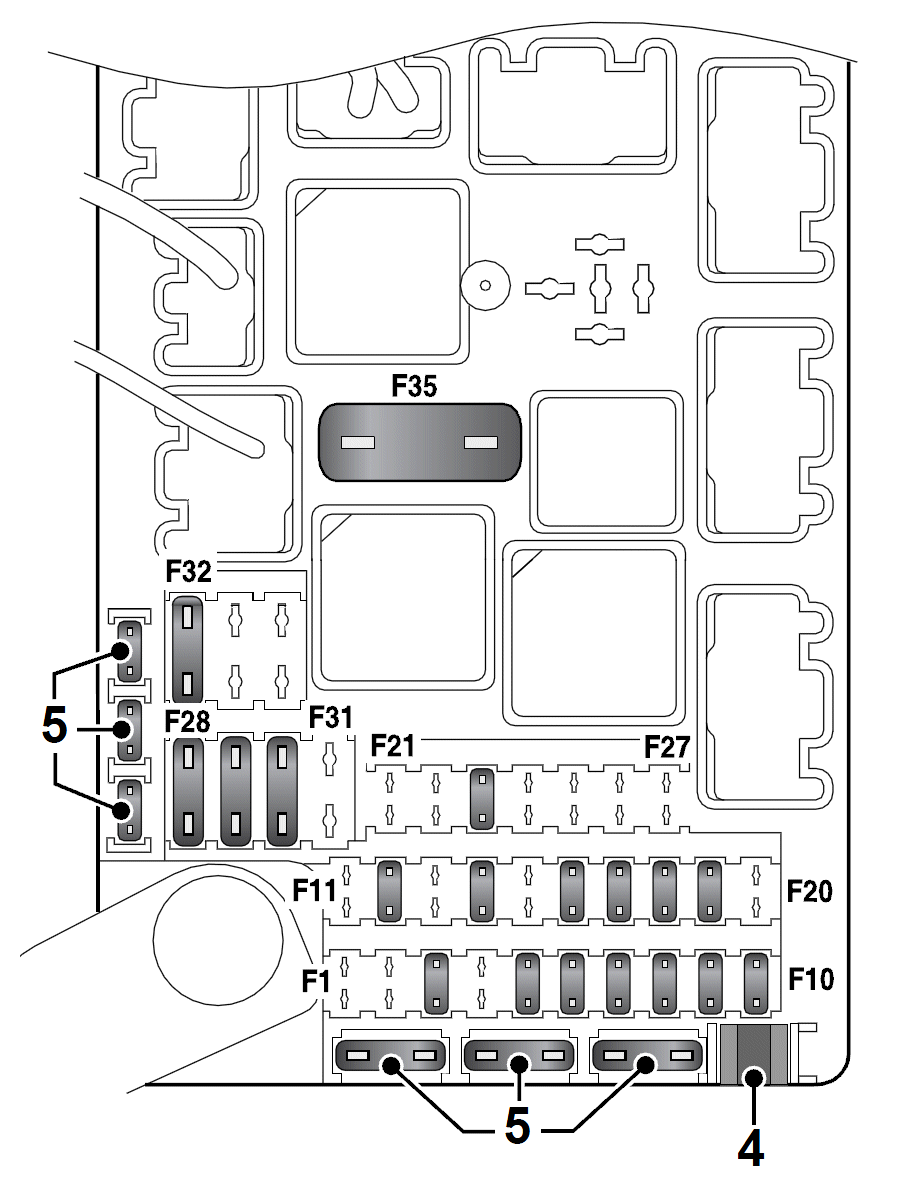

PASSENGER COMPARTMENT (DRIVER'S SIDE) FUSE BOX FUSE IDENTIFICATION LEGEND
| Fuse No. | Amps | Fuse Function |
|---|---|---|
| F1 | - | Not used |
| F2 | - | Not used |
| F3 | 20A | Keyless vehicle module |
| F4 | - | Not used |
| F5 | 5A | Instrument cluster logic |
| F6 | 15A | Air conditioning |
| F7 | 5A | Passive Anti-Theft System (PATS) transmitter/receiver |
| F8 | 5A | Footbrake switch |
| F9 | 5A | Driver's mirror switch, passenger seat memory switch, passenger seat module |
| F10 | 15A | Instrument cluster (column adjust) |
| F11 | - | Not used |
| F12 | 10A | Interior lamp switched power comprises - map, courtesy, footwell, sunvisor, glovebox, In car aspirator |
| F13 | - | Not used |
| F14 | 15A | Adaptive dynamic ride control power |
| F15 | - | Not used |
| F16 | 15A | Front power pointpoint, premium audio amplifier, cooling fan |
| F17 | 5A | OBD II |
| F18 | 5A | Dual sun load, driver's seat module, driver's seat memory |
| F19 | 5A | RF receiver |
| F20 | - | Not used |
| F21 | - | Not used |
| F22 | - | Not used |
| F23 | 10A | Cabin accessory power |
| F24 | - | Not used |
| F25 | - | Not used |
| F26 | - | Not used |
| F27 | - | Not used |
| F28 | 30A | Passenger seat motor (2) |
| F29 | 30A | Passenger seat motor (1) |
| F30 | 30A | Driver's seat module (1) |
| F31 | - | Not used |
| F32 | 30A | Driver's seat module (2) |
| F33 | - | Not used |
| F34 | - | Not used |
| F35 | 40A | SAI Maxi fuse |
