Engine Compartment

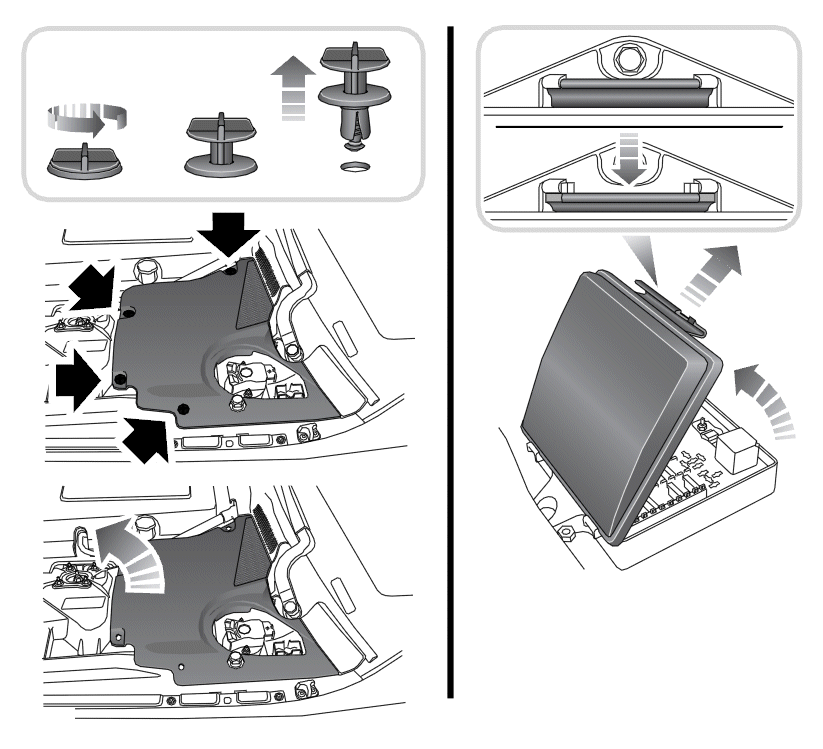

The engine compartment fuse box is located in the engine compartment on the left-hand side underneath the engine compartment left-hand cover. See Fig 1.

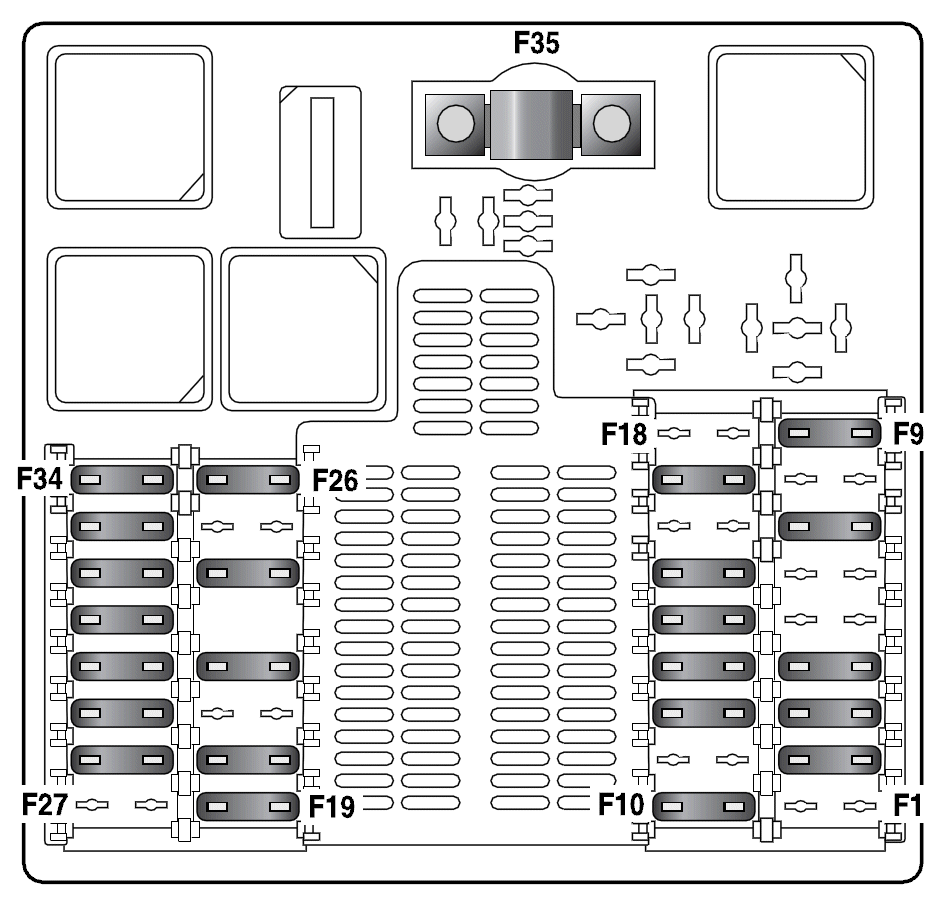

ENGINE COMPARTMENT FUSE BOX FUSE IDENTIFICATION LEGEND
| Fuse No. | Amps | Fuse Function |
|---|---|---|
| F1 | - | Not used |
| F2 | 10A | Throttle motor |
| F3 | 5A | DSC ECM; EMS ECM |
| F4 | 30A | Powerwash pump |
| F5 | - | Not used |
| F6 | - | Not used |
| F7 | - | Not used |
| F8 | - | Not used |
| F9 | 15A | Cigar lighter heater element |
| F10 | 15A | Horn |
| F11 | - | Not used |
| F12 | 10A | 2 x variable valve timing actuator (A and B), EMS control module |
| F13 | 10A | Injectors |
| F14 | 10A | Exhaust gas recirculation valve, radiator fan controller, purge valve, mass air flow meter (N/A), diagnostic monitor tank leakage, second air injection vacuum solenoid |
| F15 | 10A | ACM/FLS |
| F16 | - | Not used |
| F17 | 15A | TCM |
| F18 | - | Not used |
| F19 | 30A | Starter |
| F20 | 40A | DSC pump |
| F21 | - | Not used |
| F22 | 20A | DSC valves |
| F23 | - | Not used |
| F24 | 15A | Intercooler water pump |
| F25 | - | Not used |
| F26 | 40A | Wiper motor |
| F27 | - | Not used |
| F28 | 5A | Cluster (VAPS Power), headlight level/adaptive front lighting ECM |
| F29 | 15A | Active front lighting (LH) |
| F30 | 15A | Ignition coils plus 6.8 MF capacitor |
| F31 | 15A | Active front lighting (RH) |
| F32 | - | Not used |
| F33 | 30A | UHGEO - A-bank heaters |
| F34 | 30A | UHGEO - B-bank heaters |
| F35 | 80A | Radiator fan |
