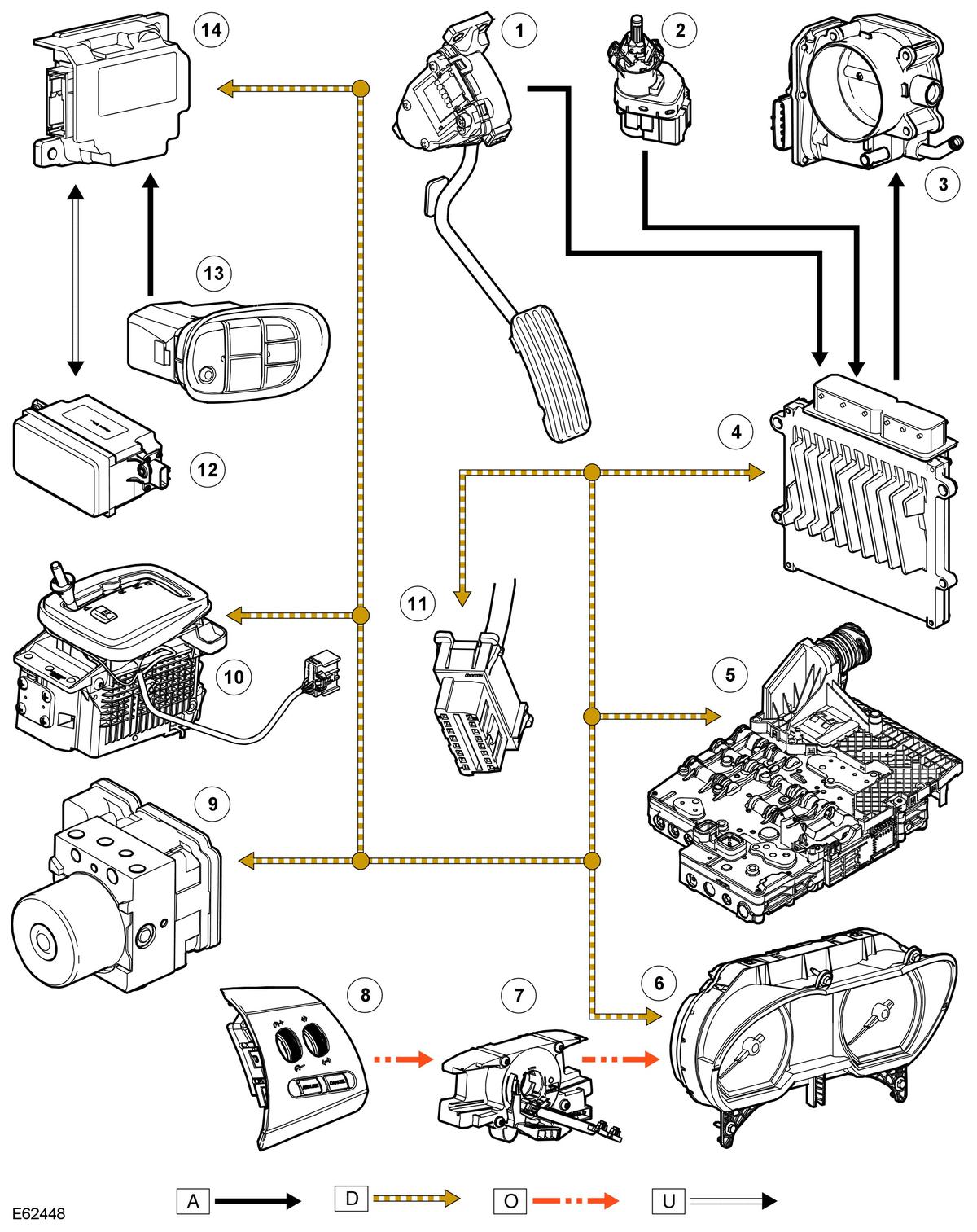

Control Diagram
| Item Number | Description |
|---|---|
| 1 | APP sensor |
| 2 | Brake switch |
| 3 | Electric throttle |
| 4 | ECM |
| 5 | TCM |
| 6 | Instrument cluster |
| 7 | Clock spring |
| 8 | Steering wheel speed control switches |
| 9 | ABS module |
| 10 | Transmission selector lever |
| 11 | Diagnostic socket |
| 12 | Adaptive speed control sensor (adaptive speed control system only) |
| 13 | Forward alert switch (adaptive speed control system only) |
| 14 | Adaptive speed control module (adaptive speed control system only) |
NOTE:
A = Hardwired connection; D = High speed CAN bus; O = LIN (local interconnect network) bus; U = Private CAN
