Oil Temperature Sensor (18.31.01): Removal

  1. Remove the air deflector. For additional information, refer to FRONT END BODY PANELS (2003.5-09)
  2. Disconnect the oil temperature sensor electrical connector.
    Fig 1: Disconnecting Oil Temperature Sensor Electrical Connector
    G03555179Courtesy of JAGUAR CARS, INC.
  3. Remove the oil temperature sensor.

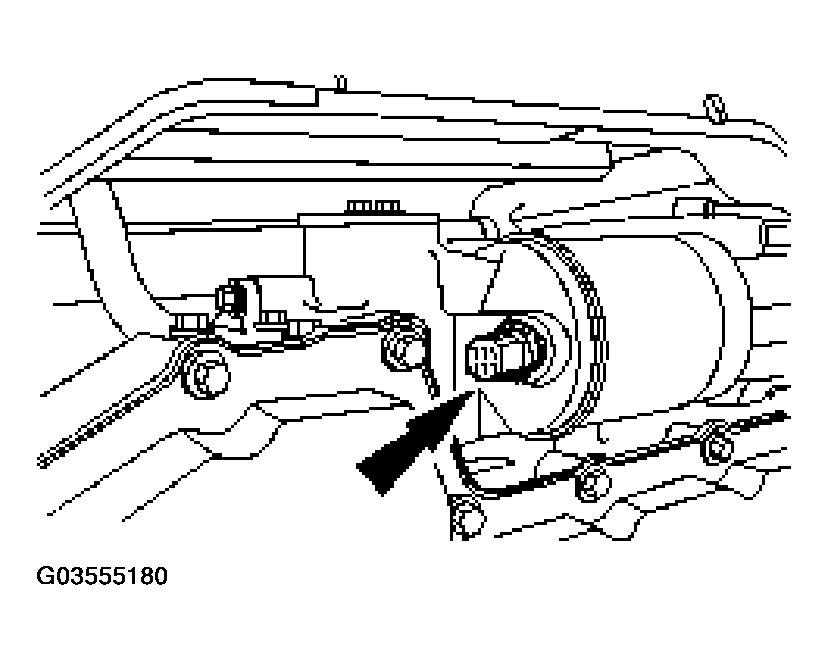

    Fig 2: Removing Oil Temperature Sensor
    G03555180Courtesy of JAGUAR CARS, INC.
