Climate Controlled Seat Module Connector End View

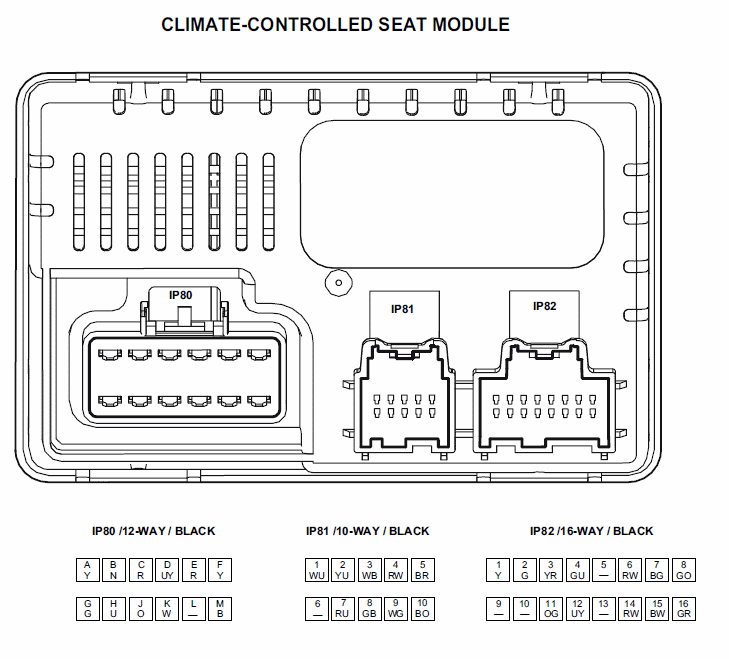

Fig 1: Climate Controlled Seat Module Connector End View

G00558683

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
