Rear Electronic Module Connector End View

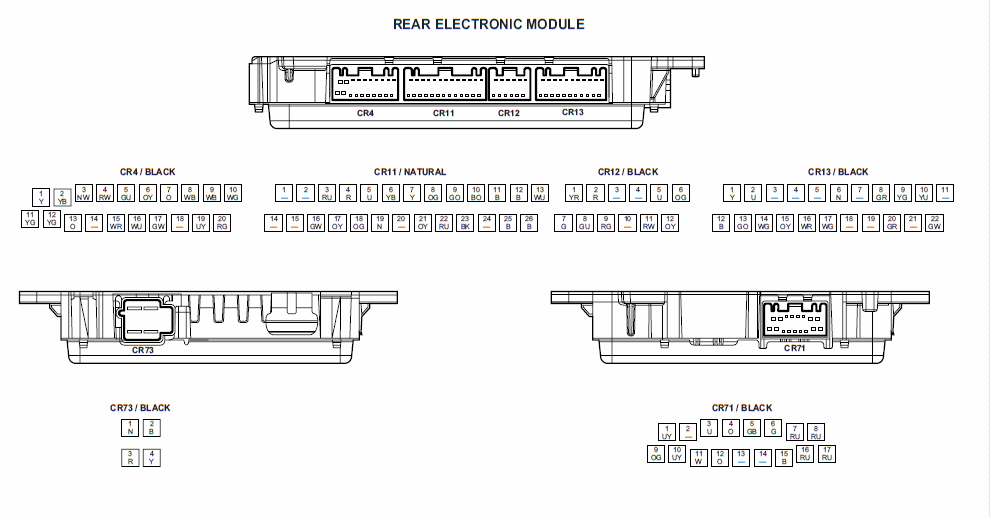

Fig 1: Rear Electronic Module Connector End View

G00558693

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
