Dynamic Stability Control Module Connector End View
Dynamic Stability Control Module Connector End View

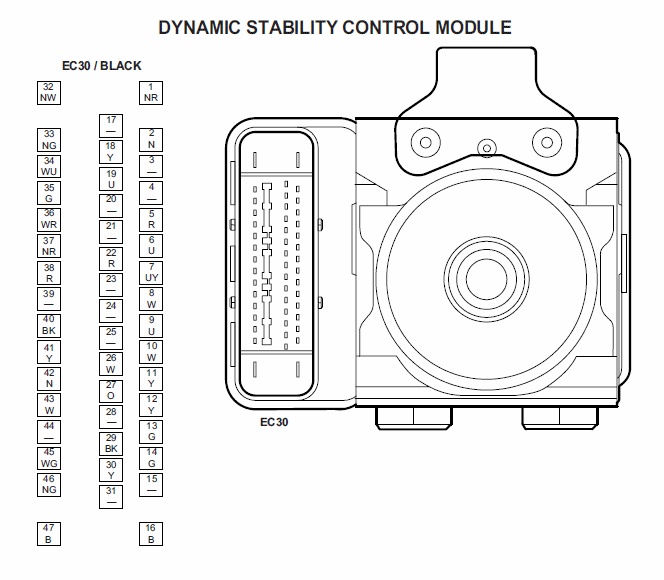

Fig 1: Dynamic Stability Control Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
