4.31.2 Camshaft Position

The camshaft position sensors are used to monitor the actual level of camshaft advance/retard against the target level. If the target and actual values do not match for a calibratable period of time a failure is registered. If a failure is registered on 2 drive cycles, the MIL will illuminate.

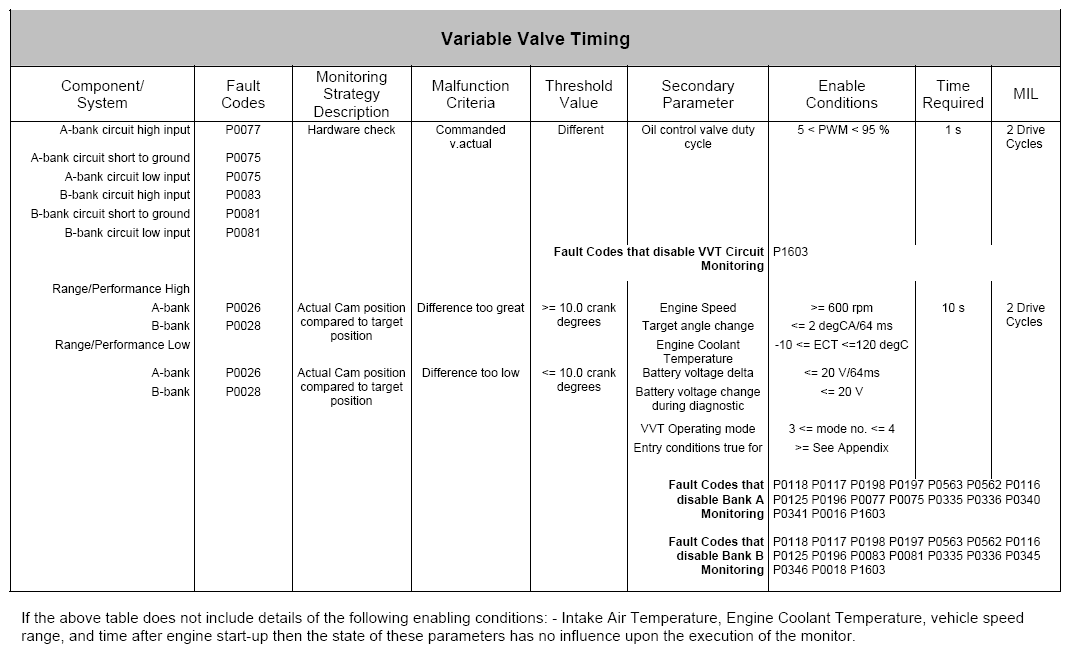

Fig 1: Variable Valve Timing (P0026, P0028, P0075, P0077, P0081, P0083)

Courtesy of JAGUAR CARS, INC.
