4.21.1 Description

When all of the entry conditions have been satisfied, the input signals from the two knock sensors are checked against variable upper and lower threshold levels that are dependent on engine speed. If either sensor input is outside the threshold, then a failure will be flagged. If a failure is noted on two drive cycles the MIL will illuminate.

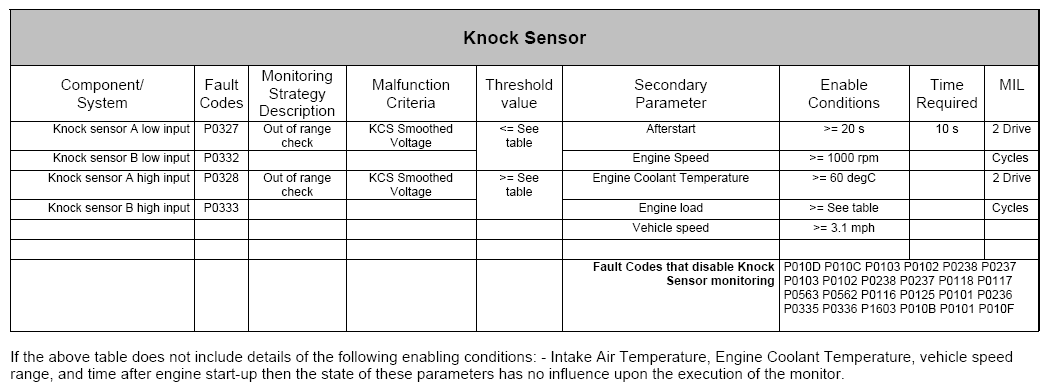

Fig 1: Knock Sensor (P0327, P0328, P0332, P0333)

Courtesy of JAGUAR CARS, INC.

Fig 2: Knock Sensor Low Limit Threshold - P0327, P0332 (Naturally Aspirated)

Courtesy of JAGUAR CARS, INC.

Fig 3: Knock Sensor High Limit Threshold - P0328, P0333 (Naturally Aspirated)

Courtesy of JAGUAR CARS, INC.

Fig 4: Engine Load Entry Condition For Knock Sensor Diagnostic - P0327, P0328, P0332, P0333 (Naturally Aspirated)

Courtesy of JAGUAR CARS, INC.

Fig 5: Knock Sensor Low Limit Threshold - P0327, P0332 (Supercharged)

Courtesy of JAGUAR CARS, INC.

Fig 6: Knock Sensor High Limit Threshold - P0328, P0333 (Supercharged)

Courtesy of JAGUAR CARS, INC.

Fig 7: Engine Load Entry Condition For Knock Sensor Diagnostic - P0327, P0328, P0332, P0333 (Supercharged)

Courtesy of JAGUAR CARS, INC.
